Bracket Disassembly Note

  1. To disassemble the bracket, push the stopper down with a small screwdriver.

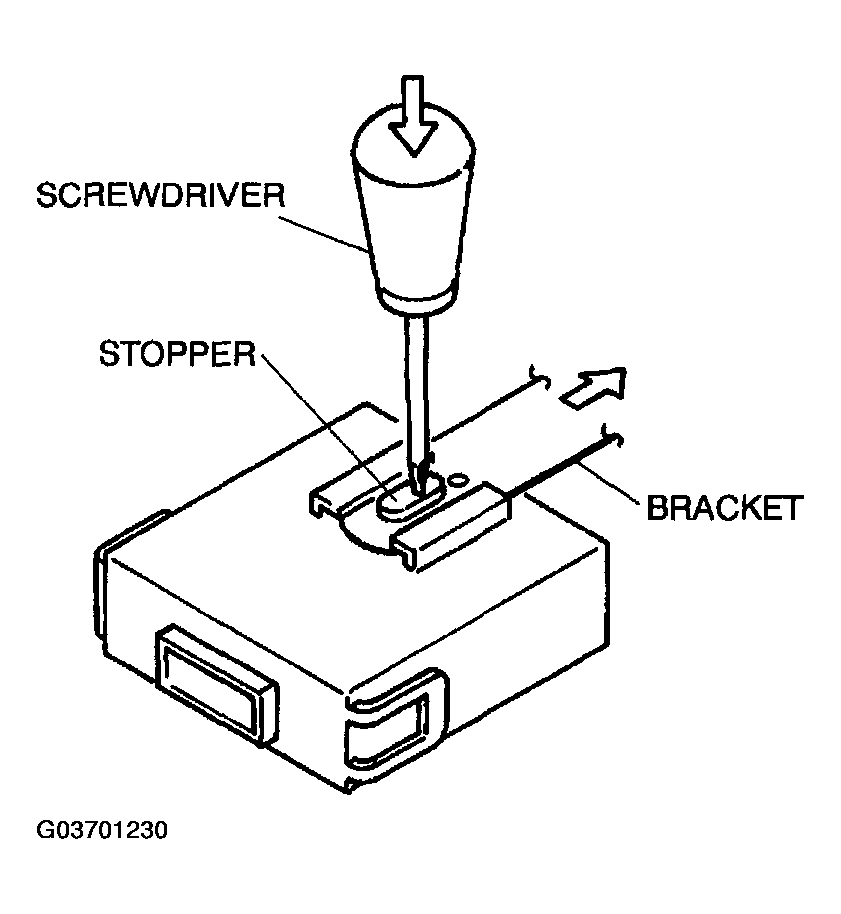

    Fig 1: Pushing Stopper Down
    G03701230Courtesy of MAZDA MOTORS CORP.
