Keyless Control Module Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

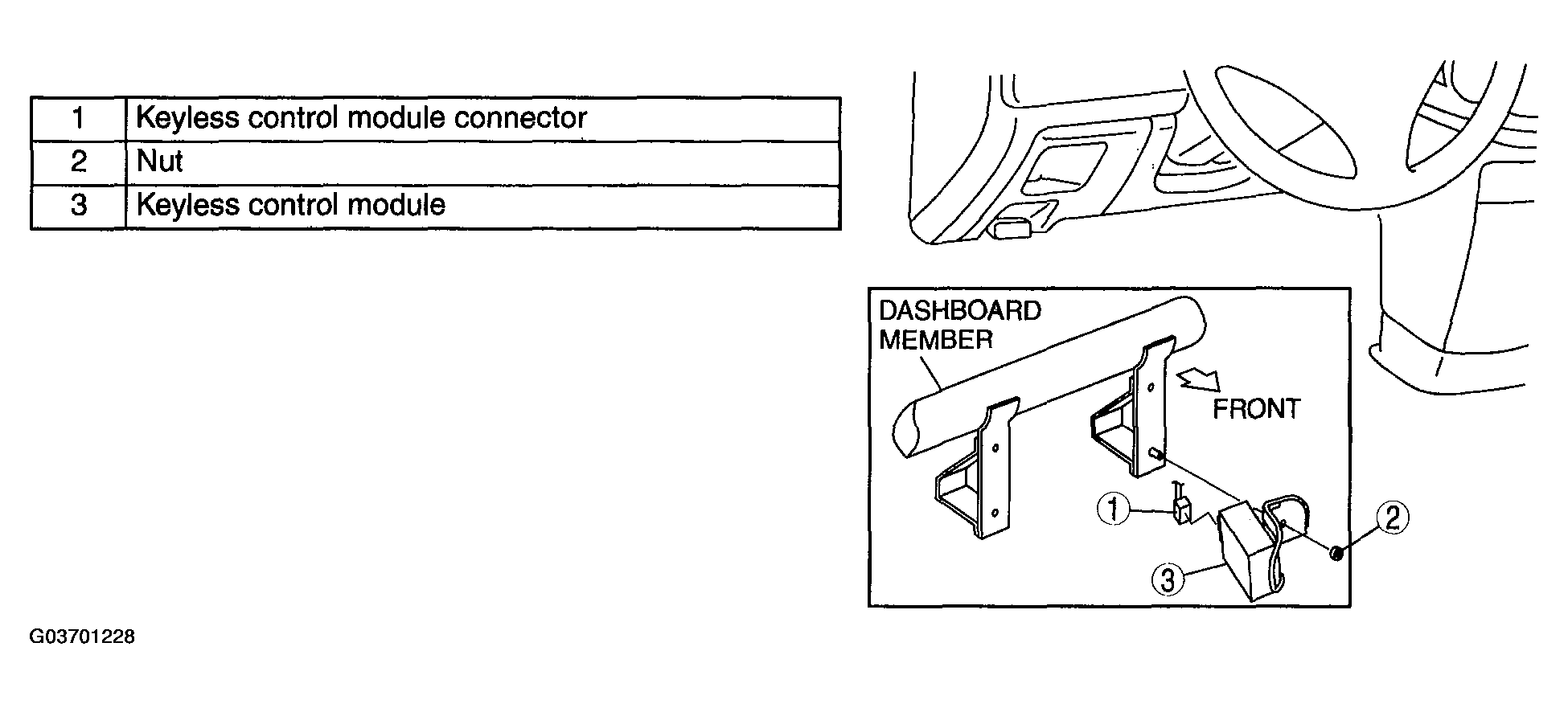

    Fig 1: Removing Keyless Control Module
    G03701228Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
