DRL Control Module Connector End View

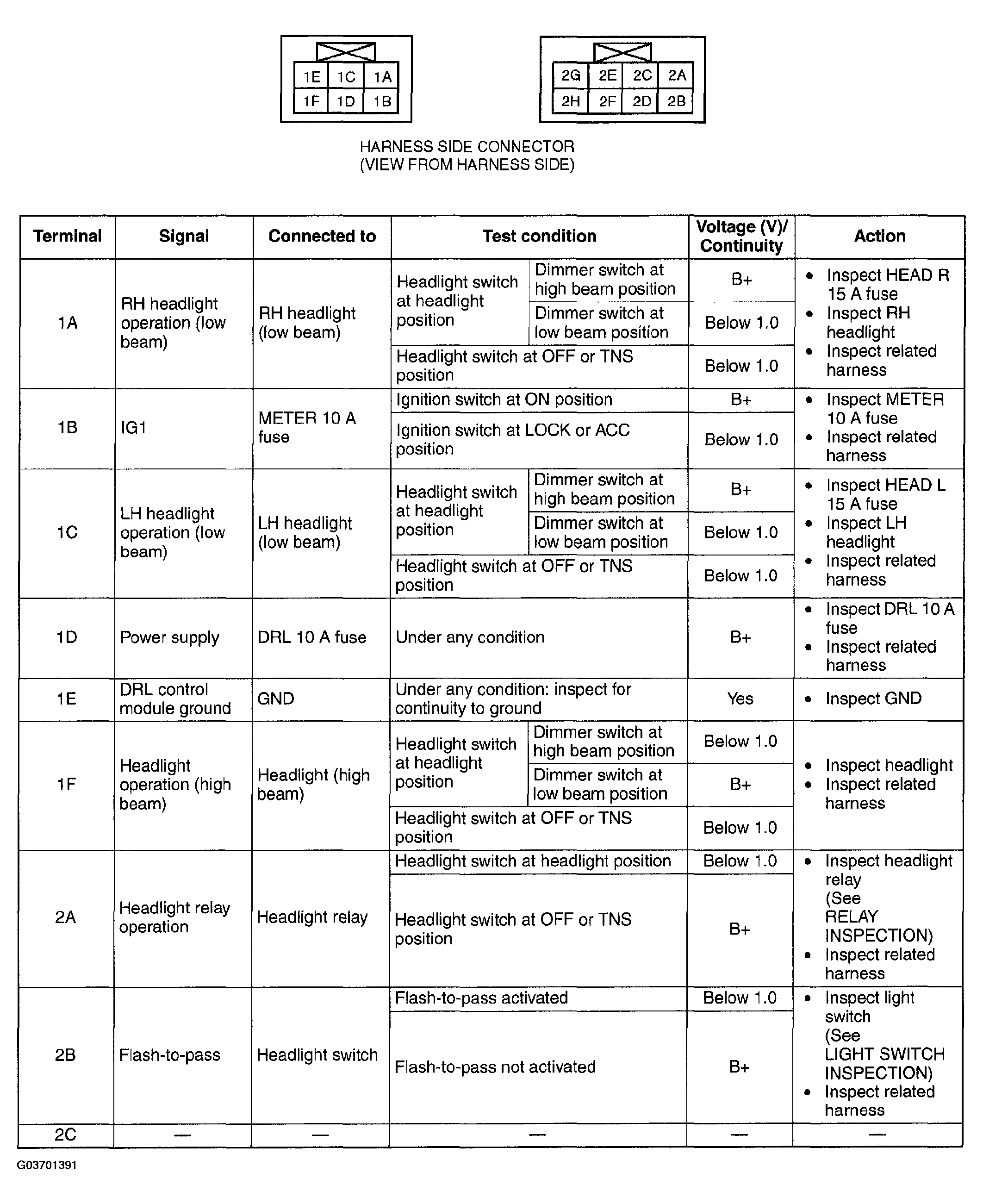

Fig 1: DRL Control Module Connector End View
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
