Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Engine Control Systems
>>
Control System Diagram
>>
Without Rear HO2S Model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Without Rear HO2S Model

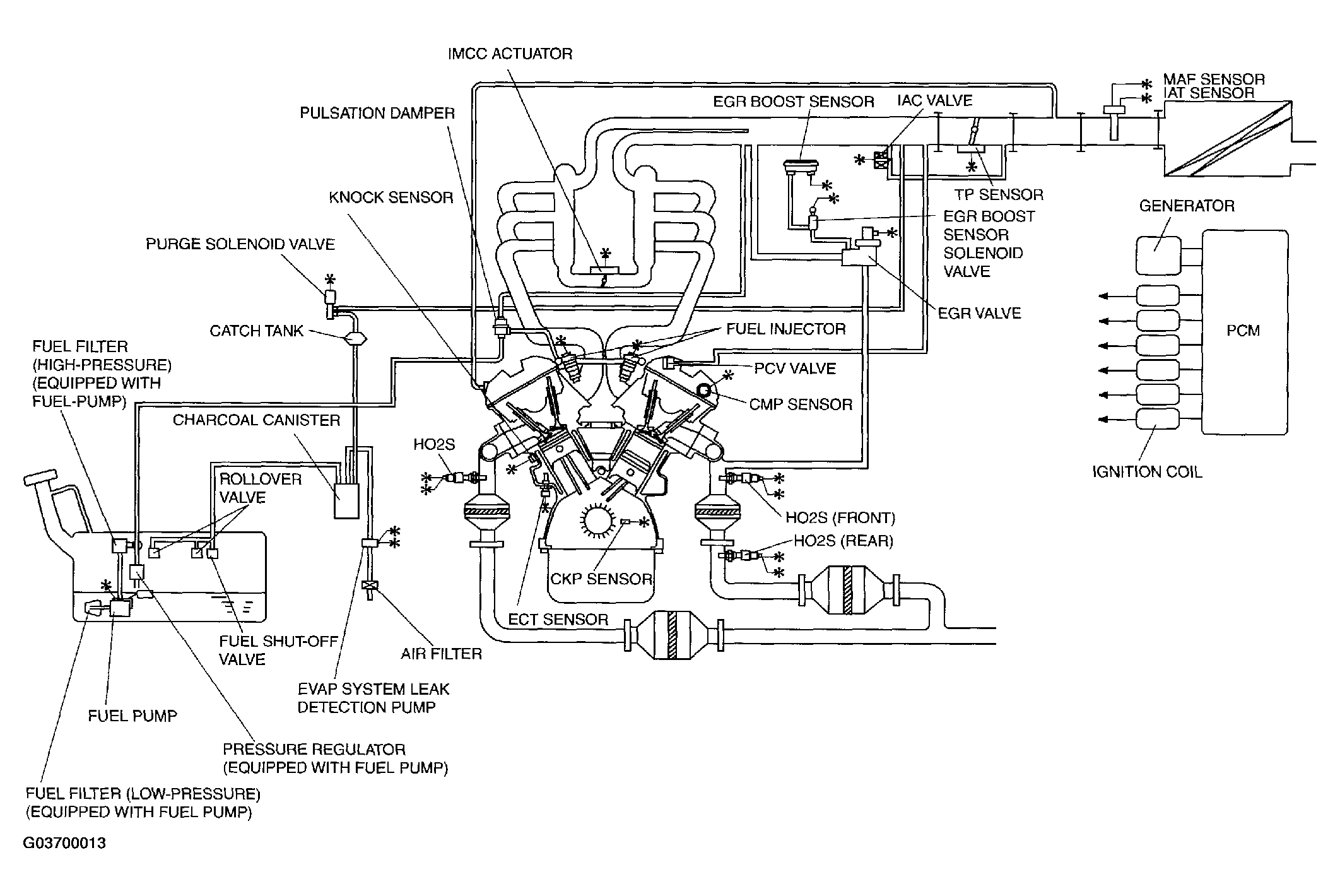

Fig 1: Identifying Control System Diagram (Without Rear HO2S Model)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
