Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
  2. Connect the SST  (104 Pin Breakout Box) with the PCM disconnected.
  3. Tighten the connector attaching bolt.

    Tightening torque

    1. 3.0-5.4 N.m {30-56 kgf.cm, 27-48 in.lbf}

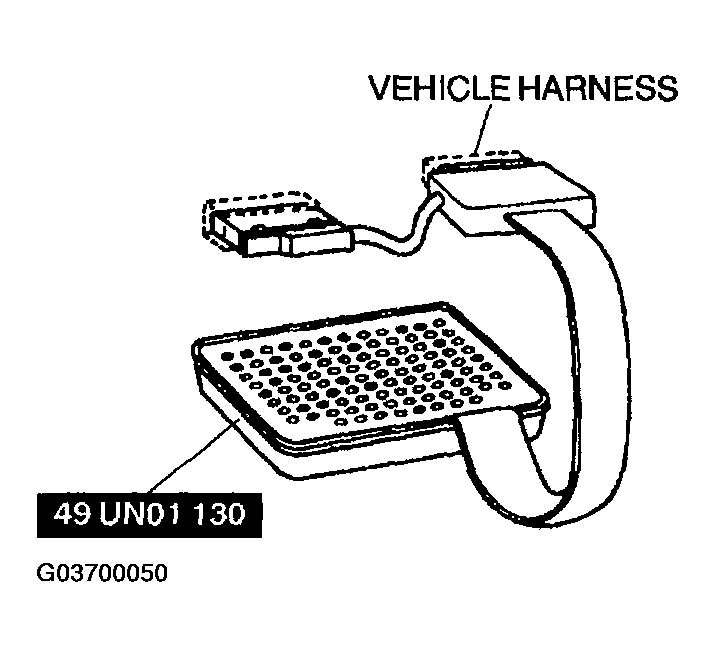

    Fig 1: Connecting 104 Pin Breakout Box
    G03700050Courtesy of MAZDA MOTORS CORP.
  4. Check the following wiring harness for open or short circuit (Continuity check).

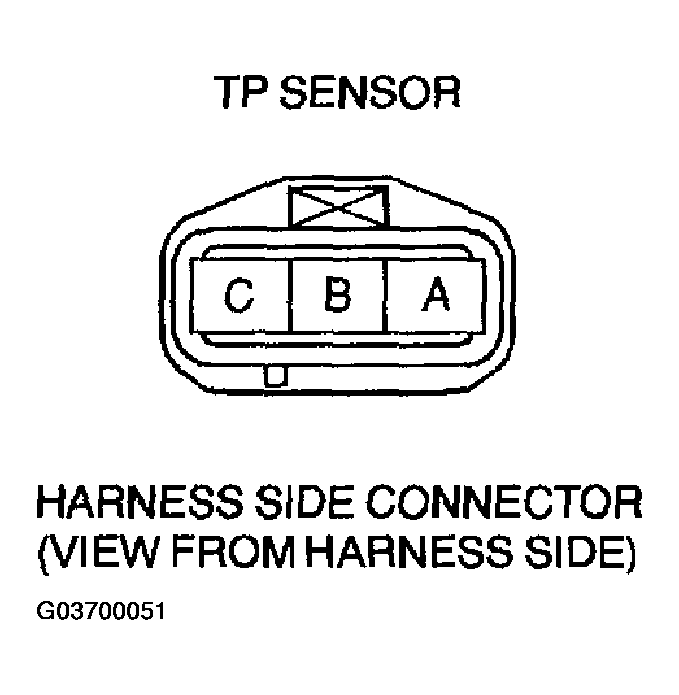

    Fig 2: Identifying Throttle Position Sensor Harness Side Connector
    G03700051Courtesy of MAZDA MOTORS CORP.
