Control System Device And Control Relationship Chart

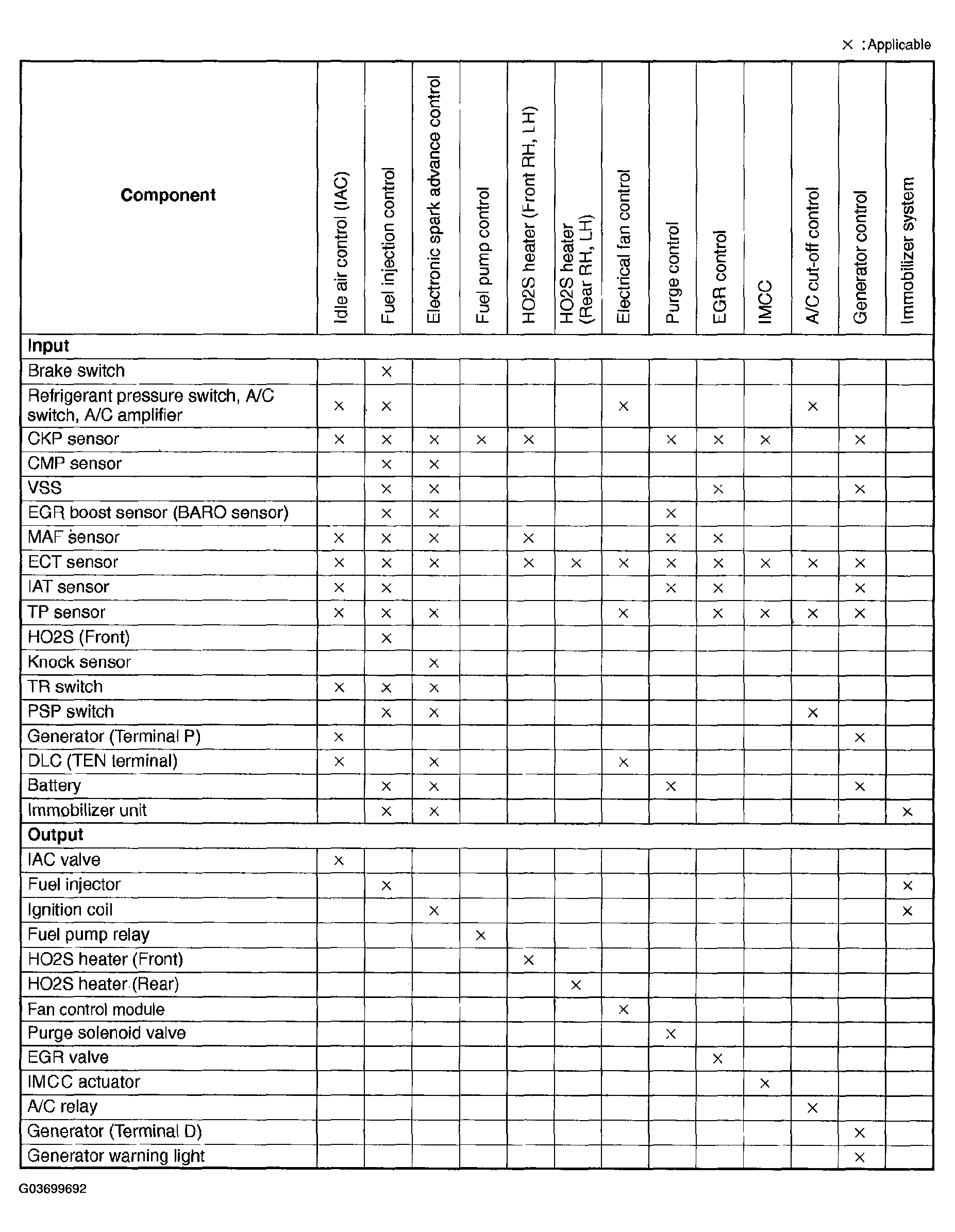

Fig 1: Control System Device And Control Relationship Chart
G03699692Courtesy of MAZDA MOTORS CORP.
