SAS Control Module Configuration (Two-Step Deployment Control System)

Connect the WDS or equivalent to the DLC-2 (16-pin).
Select "Module programming" from the menu.
Select "Programmable Module Installation".
Select the following items and perform procedure according to the directions on the WDS screen.
Item
1. "RCM"

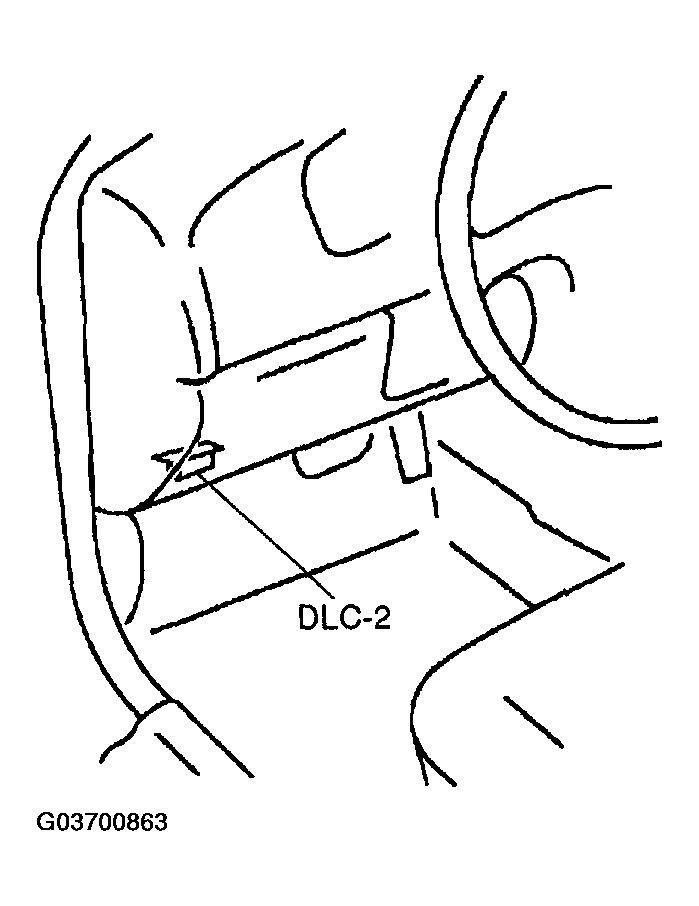

Fig 1: Locating DLC-2
Courtesy of MAZDA MOTORS CORP.
