Key Interlock Resistor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Disconnect the key interlock resistor connector.
  3. Remove the key interlock resistor.
  4. Install the key interlock resistor.
  5. Connect the key interlock resistor connector.
  6. Connect the negative battery cable.

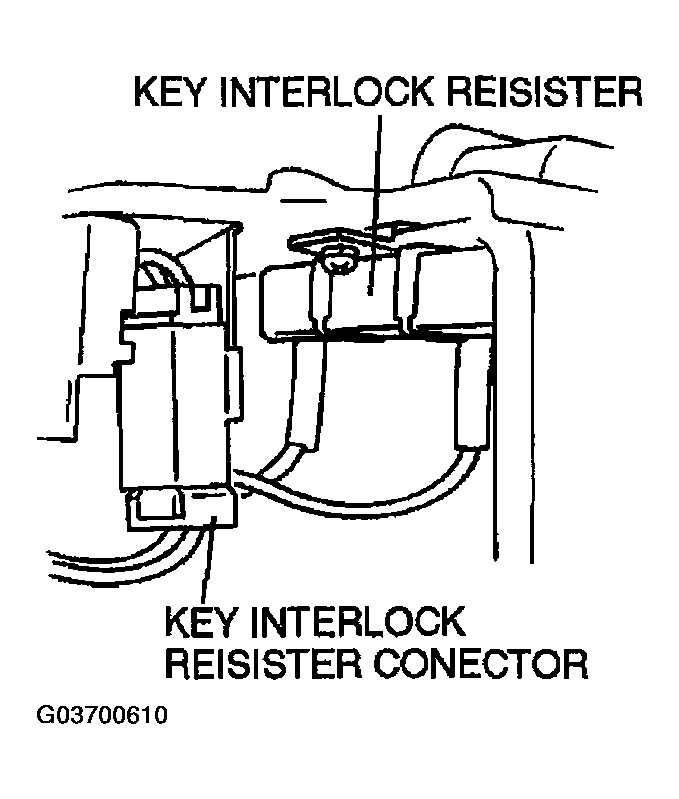

    Fig 1: Identifying Key Interlock Resistor & Key Interlock Resistor Connector
    G03700610Courtesy of MAZDA MOTORS CORP.
