Outside Mirror Glass Removal

  1. Warm the frame and the mirror glass to approximately 70 °C {158 °F}  for 3 minutes  using a hot air blower.
  2. Put on gloves and protective eye wear.
  3. Insert a tape-wrapped scraper between the mirror glass and the frame, and pry the glass loose.

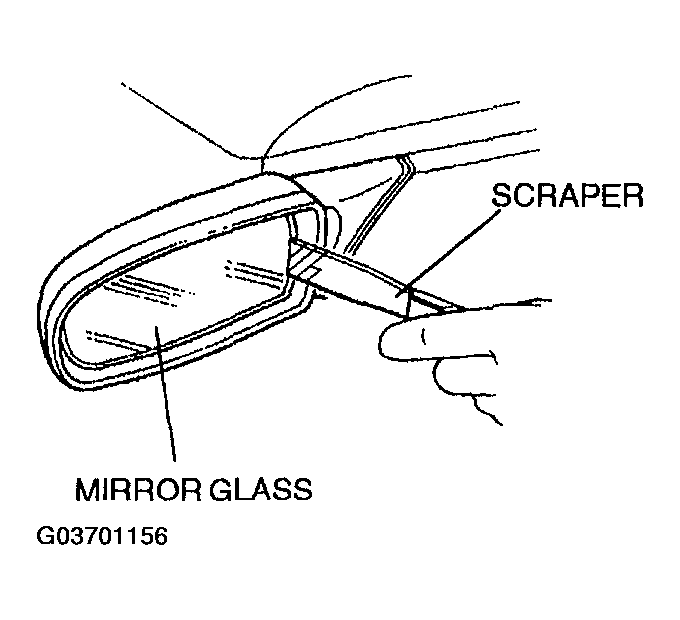

    Fig 1: Inserting Tape-Wrapped Scraper Between Mirror Glass And Frame
    G03701156Courtesy of MAZDA MOTORS CORP.
