Ignition Switch Inspection

Disconnect the ignition switch connectors.
Inspect for continuity between the ignition switch terminals using an ohmmeter.
- If not as specified, replace the ignition switch.

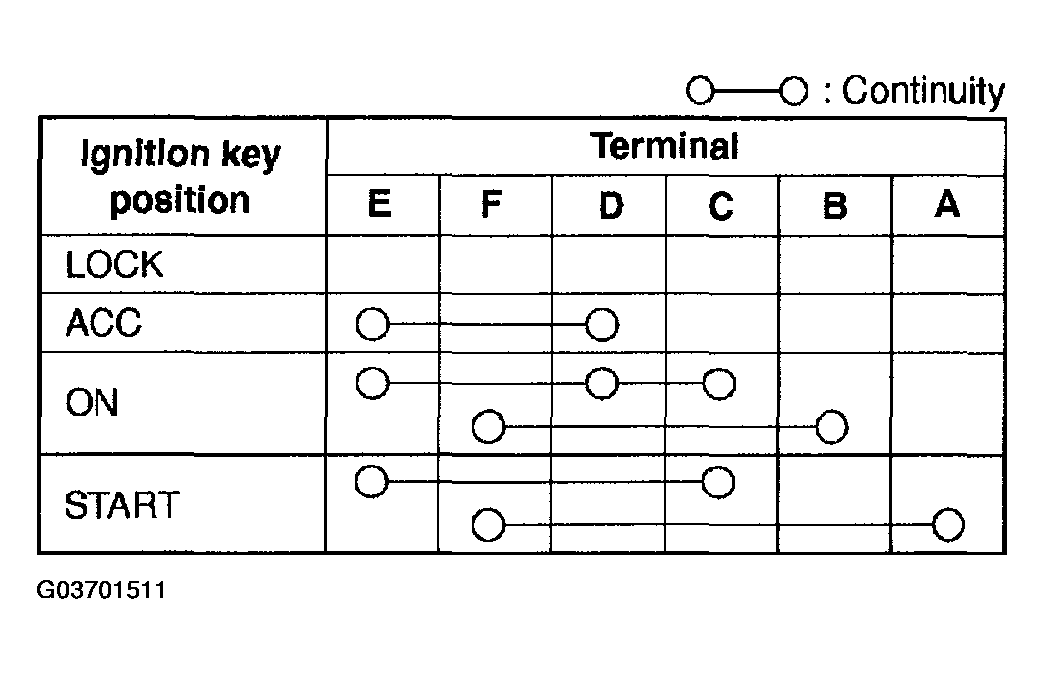

Fig 1: Ignition Switch Continuity Chart
Courtesy of MAZDA MOTORS CORP.

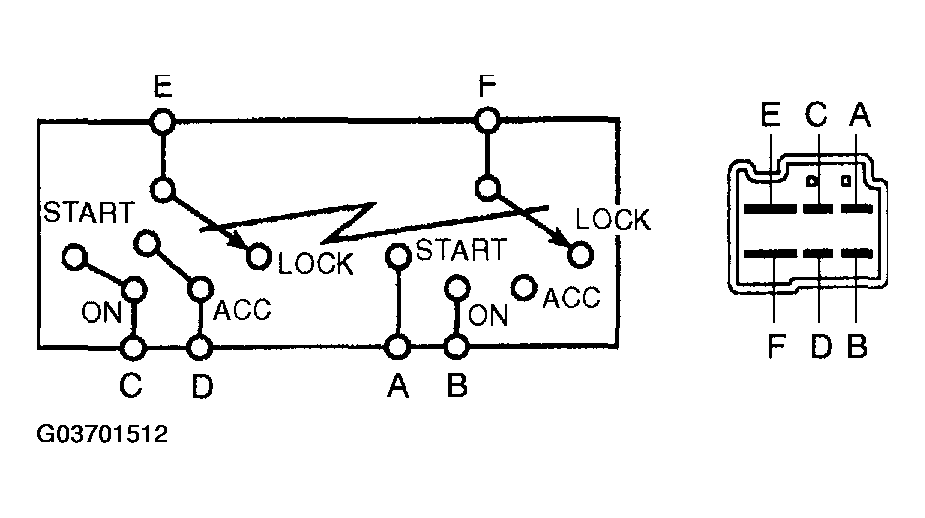

Fig 2: Checking Ignition Switch Continuity
Courtesy of MAZDA MOTORS CORP.
