Key Reminder Switch Inspection

Disconnect the key reminder switch connector.
Inspect for continuity between the key reminder switch terminals using an ohmmeter.
- If not as specified, replace the key reminder switch.

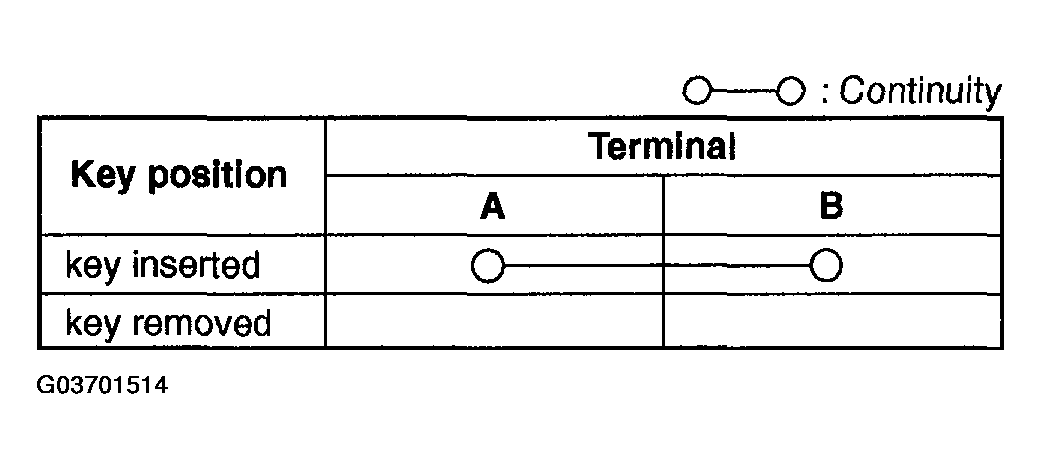

Fig 1: Key Reminder Switch Continuity Chart
Courtesy of MAZDA MOTORS CORP.

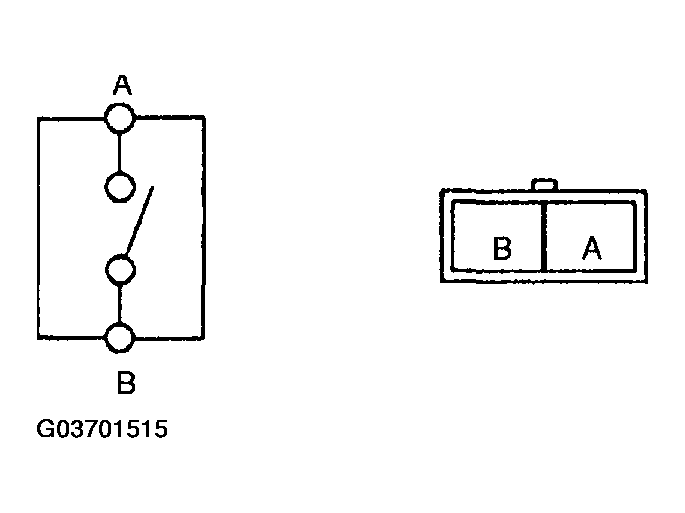

Fig 2: Checking Key Reminder Switch Continuity
Courtesy of MAZDA MOTORS CORP.
