Base Installation
- Cut away all of the original sealant using a razor.
- Clean and degrease the ceramic coating on the glass and the base.CAUTION:
- Keep the area free of dirt and grease, and do not touch the surface or the primer may not properly bond to the surface of the glass.
- Apply primer to the bonding area of the glass and the base.NOTE:
- Use only glass primer on the glass, and body primer on the base. Allow the primer to dry for approximately 30 minutes.

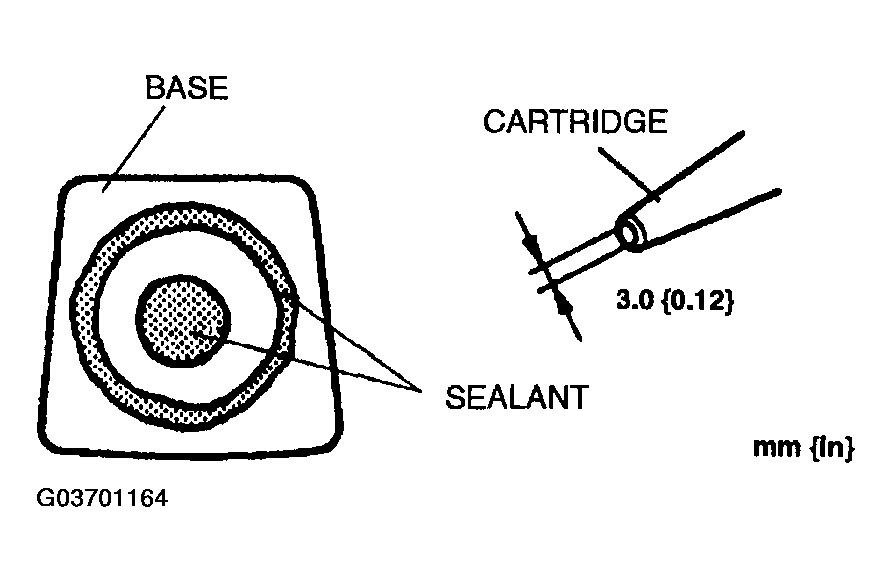

- Apply a height of 3.0 mm {0.12 in} sealant to the base.

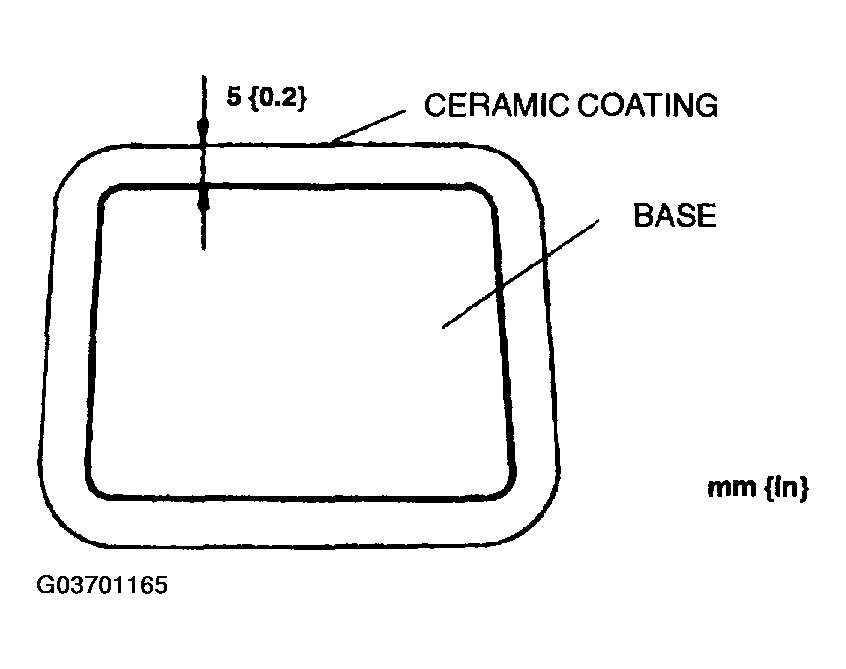

- Center the base in the ceramic coating and press it onto the glass.
- Use isopropyl alcohol to remove any excess repair sealant.
Hardening time of sealant
TEMPERATURE AND HARDENING TIME CHARTTemperature Surface hardening time Time required unit car can be put into service 5 °C {41 °F} Approx. 1.5 h Approx. 12 h 20 °C {68 °F} Approx. 1 h Approx. 4 h 35 °C {95 °F} Approx. 10 min. Approx. 2 h - Install the rear view mirror.
