Base Removal

  1. Remove the rear view mirror.
  2. Wind each end of a wire around a bar.
    NOTE:
    • Use a long sawing action to spread the work over the whole length of the SST (piano wire) to prevent it from breaking.
  3. Saw through the sealant to remove the base.

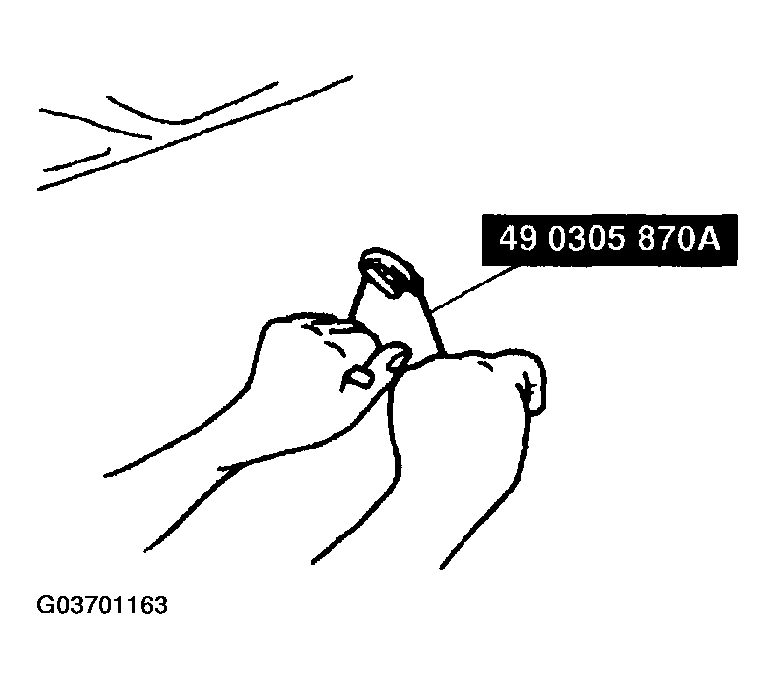

    Fig 1: Removing Base
    G03701163Courtesy of MAZDA MOTORS CORP.
