Manual Outside Mirror Removal/Installation

  1. Remove the inner garnish.
  2. Remove the nuts, and then remove the manual outside mirror.
  3. Install in the reverse order of removal.

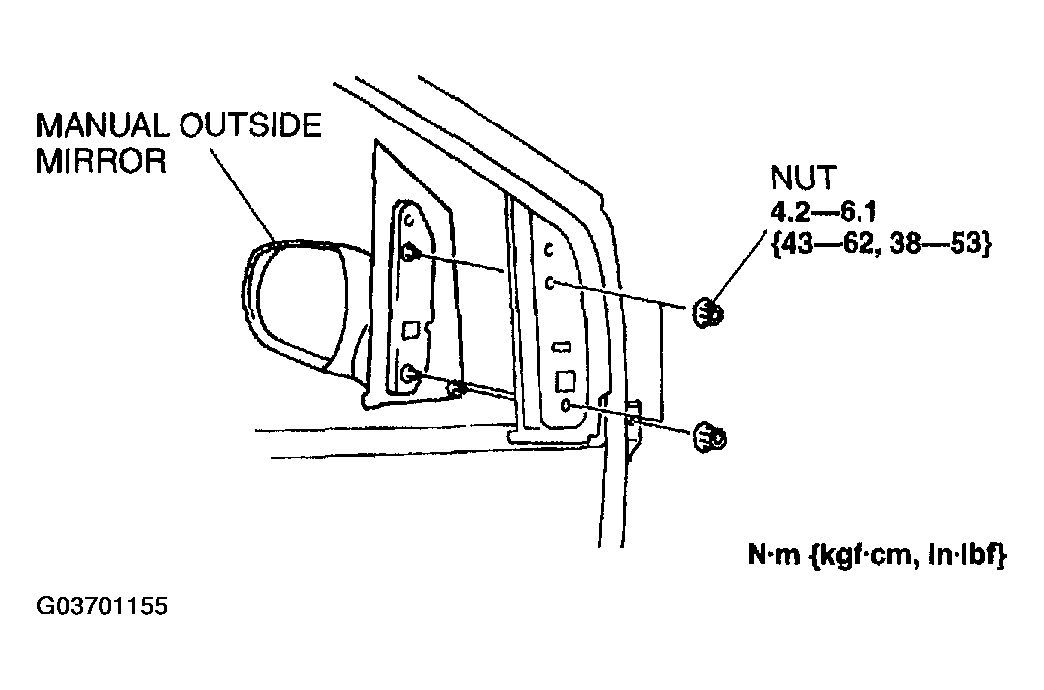

    Fig 1: Removing Manual Outside Mirror - With Torque Specifications
    G03701155Courtesy of MAZDA MOTORS CORP.
