Power Outside Mirror Inspection

Disconnect the power outside mirror connector. (See POWER OUTSIDE MIRROR REMOVAL/INSTALLATION .)

Apply battery positive voltage to the power outside mirror and inspect the operation of the power outside mirror.

If not as specified, replace the power outside mirror.

TERMINAL AND MIRROR OPERATION

Terminal		Mirror operation
B+	GND	Mirror operation
B	D	Up
D	B	Down
F	D	Left
D	F	Right

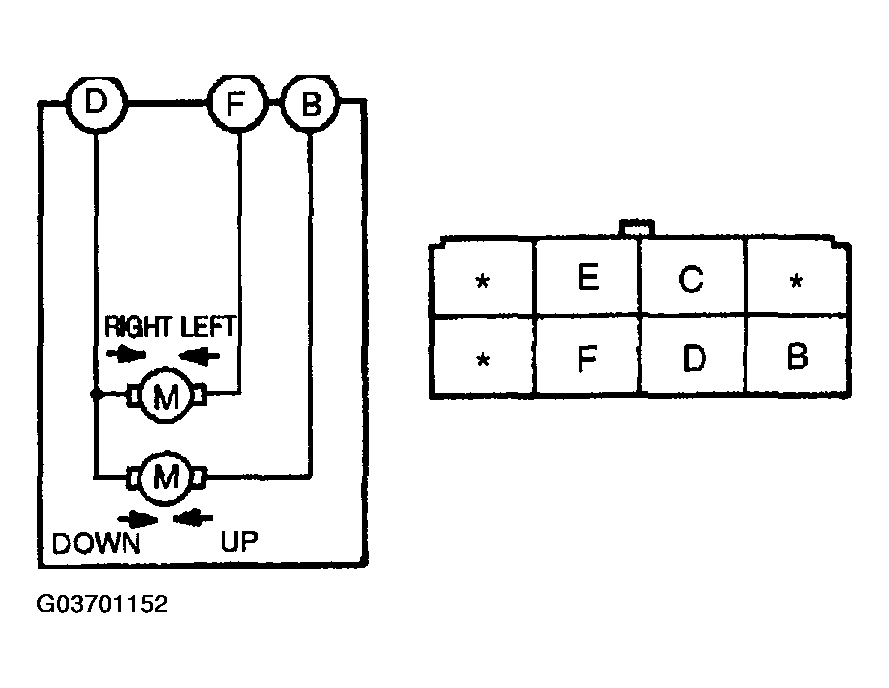

Fig 1: Inspecting Operation Of Power Outside Mirror

G03701152

Courtesy of MAZDA MOTORS CORP.

Inspect for continuity between the power outside mirror terminals.
- If not as specified, replace the power outside mirror.

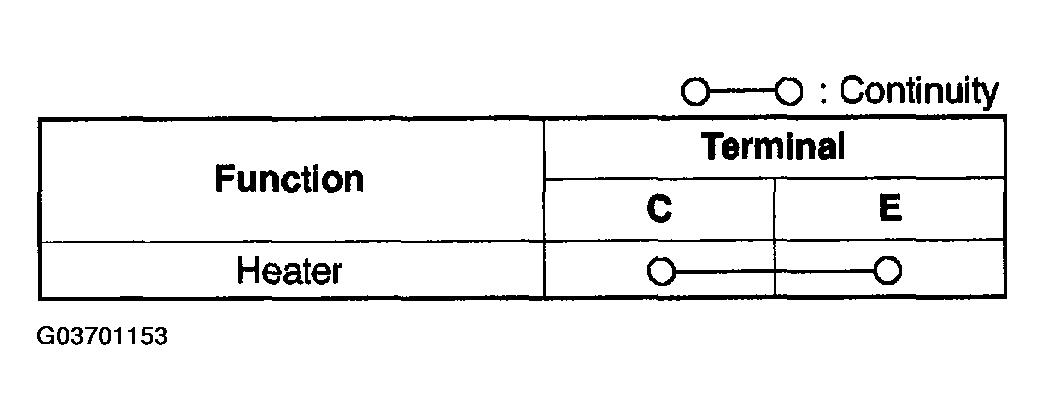

Fig 2: Continuity Between Power Outside Mirror Terminals Chart
Courtesy of MAZDA MOTORS CORP.

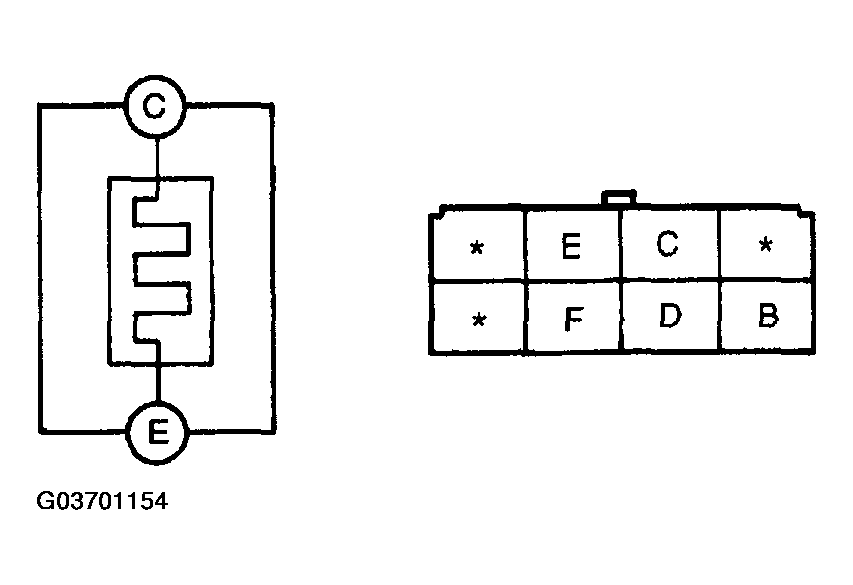

Fig 3: Checking Continuity Between Power Outside Mirror Terminals
Courtesy of MAZDA MOTORS CORP.
