Power Window Main Switch Inspection

Remove the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
When inspecting the passenger's side and the rear, verify that the power-cut switch is at UNLOCK.
Inspect for continuity between the power window main switch terminals using an ohmmeter.
- If not as specified, replace the power window main switch.

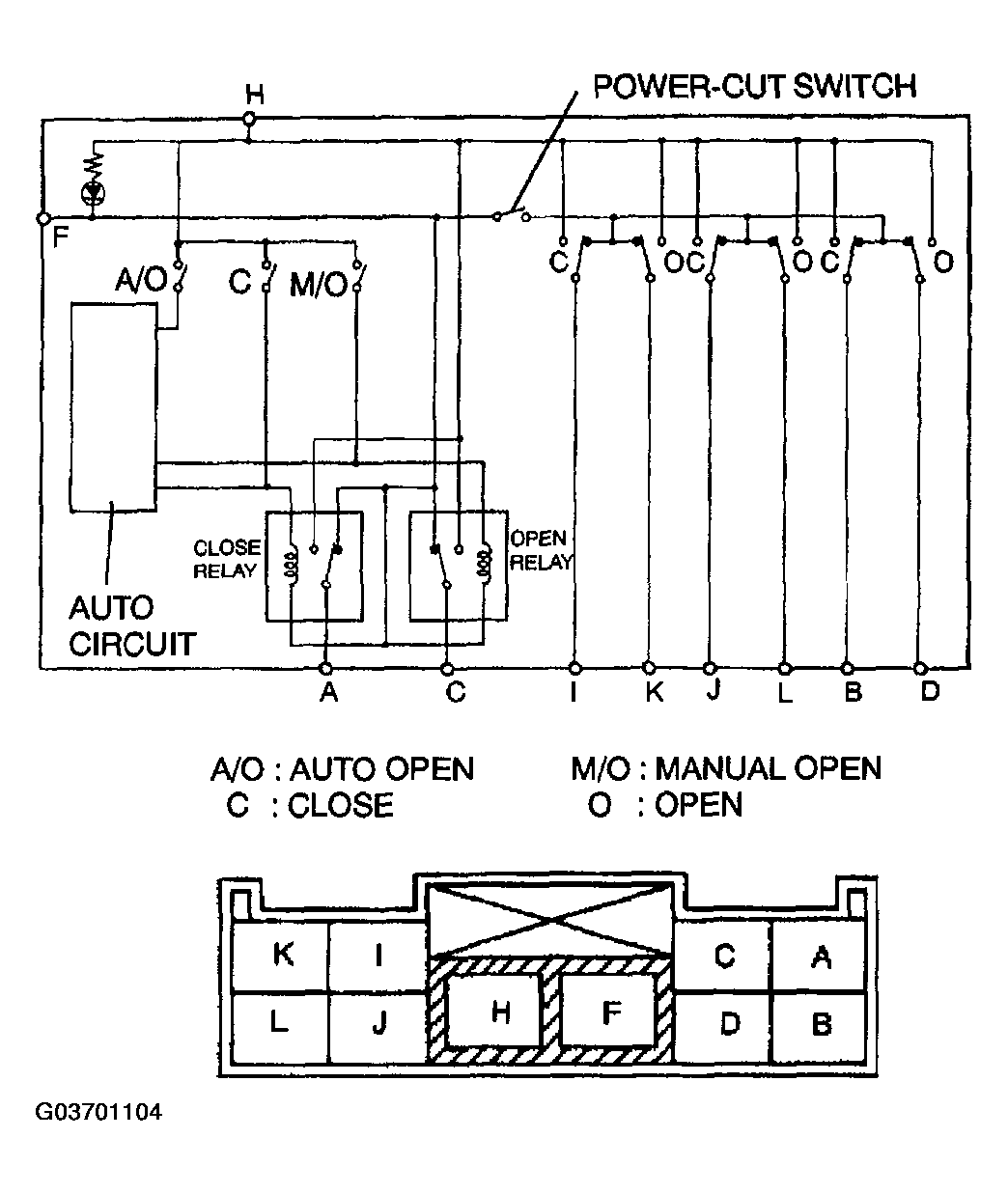

Fig 1: Power Window Main Switch Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

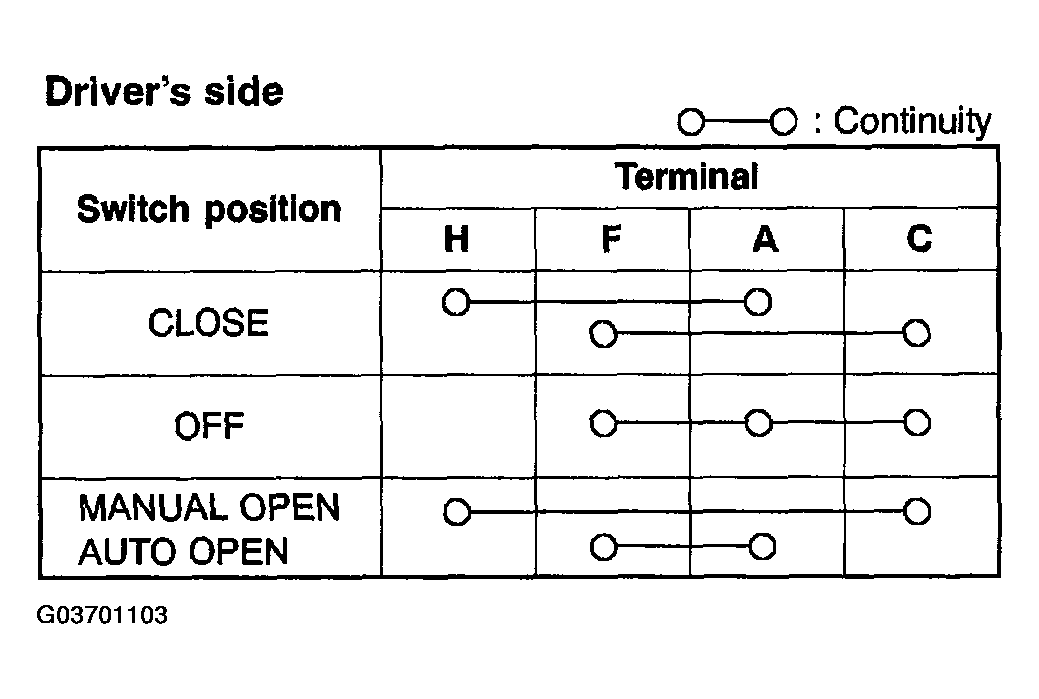

Fig 2: Continuity Between Power Window Main Switch Terminals Chart - Driver's Side
Courtesy of MAZDA MOTORS CORP.

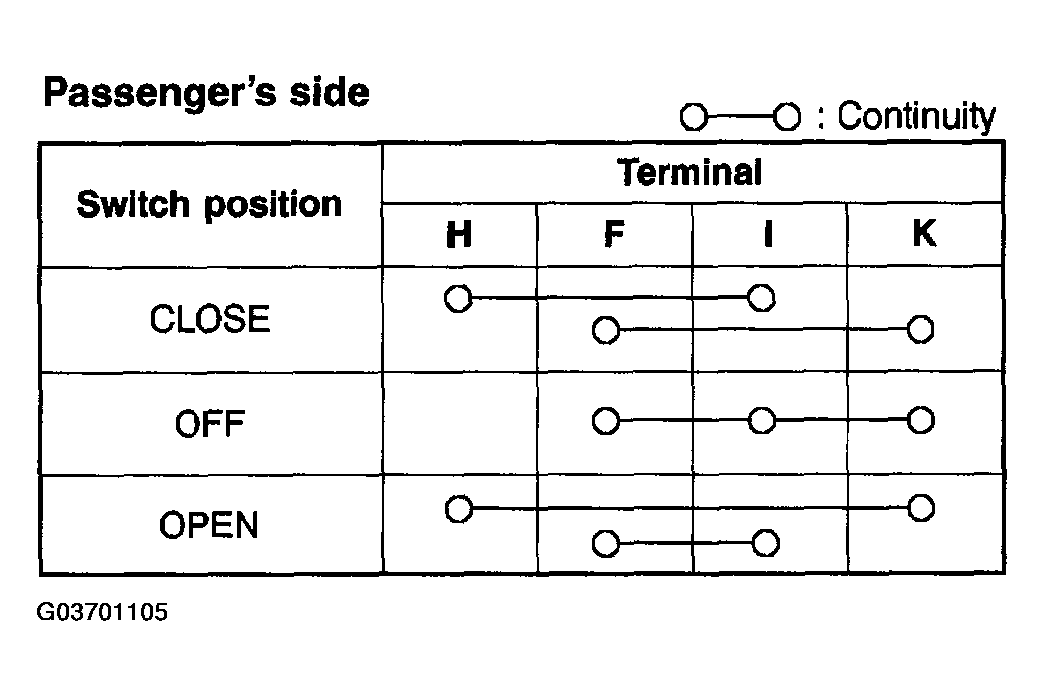

Fig 3: Continuity Between Power Window Main Switch Terminals Chart - Passenger's Side
Courtesy of MAZDA MOTORS CORP.

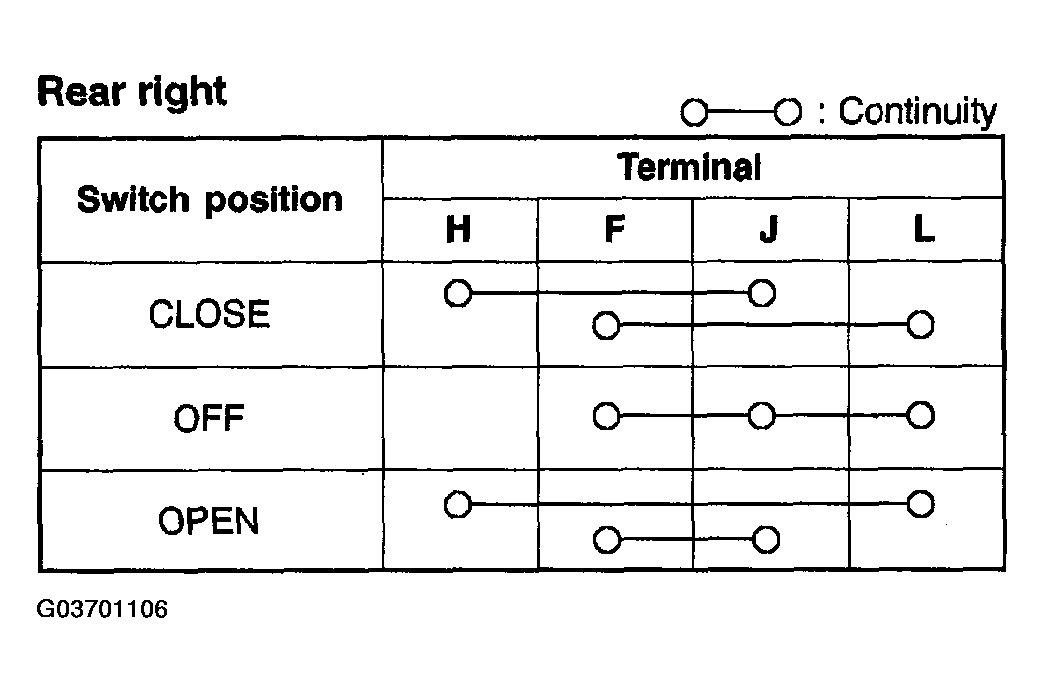

Fig 4: Continuity Between Power Window Main Switch Terminals Chart - Rear Right
Courtesy of MAZDA MOTORS CORP.

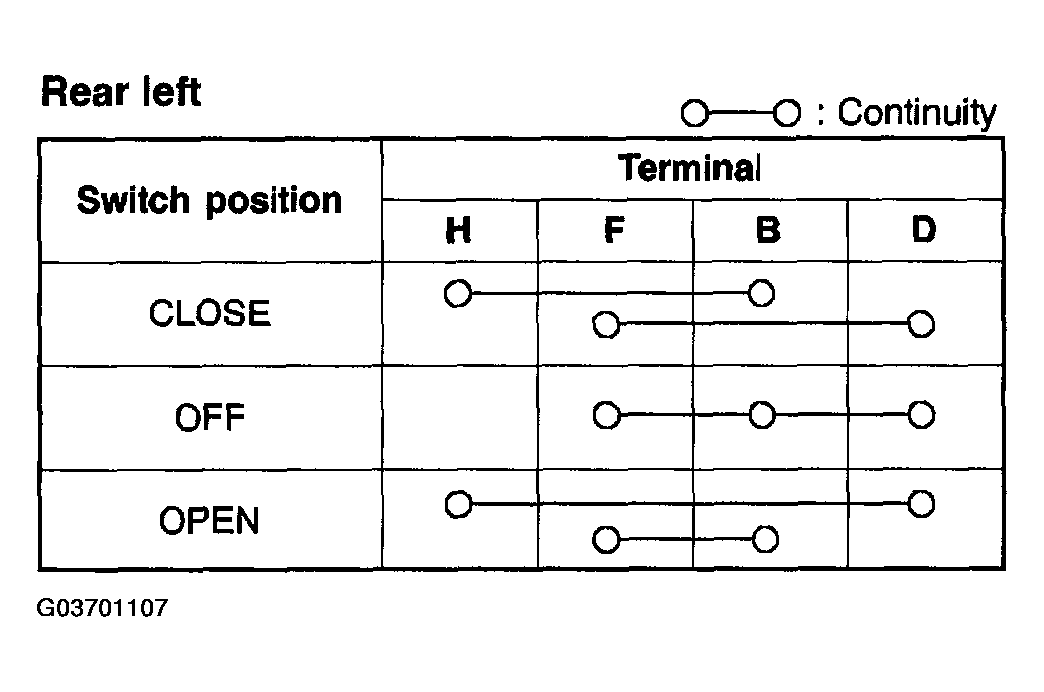

Fig 5: Continuity Between Power Window Main Switch Terminals Chart - Rear Left
Courtesy of MAZDA MOTORS CORP.

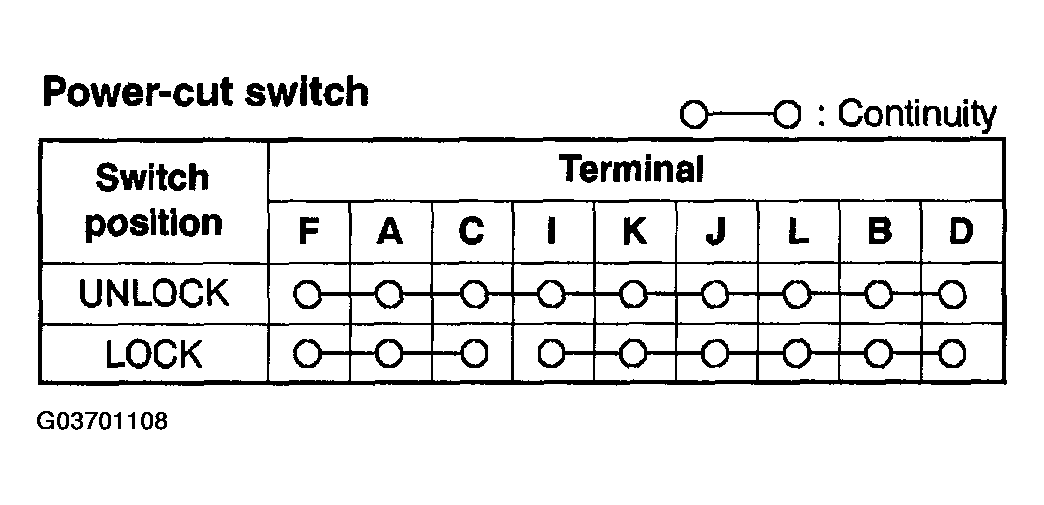

Fig 6: Continuity Between Power Window Main Switch Terminals Chart - Power-Cut Switch
Courtesy of MAZDA MOTORS CORP.
