Power Window Motor Inspection

  1. Remove the power window motor. (See FRONT POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY .) (See REAR POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY :)
  2. Apply battery positive voltage to the power window motor terminals and inspect the operation of the power window motor.
    • If not as specified, replace the power window motor.
    POWER WINDOW MOTOR TERMINAL AND MOTOR OPERATION

    Terminal Motor operation
    A B
    GND B+ Up
    B+ GND Down

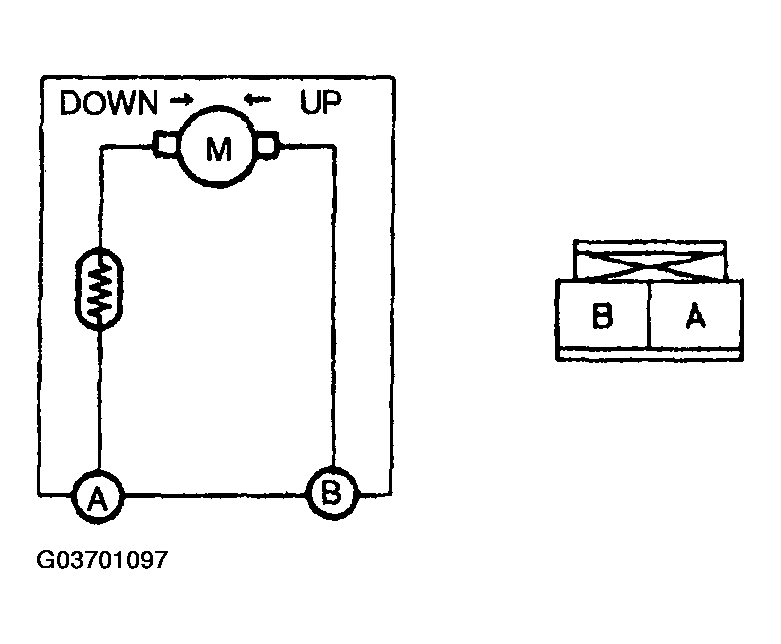

    Fig 1: Inspecting Power Window Motor Terminals
    G03701097Courtesy of MAZDA MOTORS CORP.
