Power Window SUBSWITCH Inspection

If inspecting the passenger's side, remove the switch panel.
If inspecting the rear, remove the power window sub switch.
Inspect for continuity between the power window sub switch terminals using an ohmmeter.
- If not as specified, replace the power window sub switch.

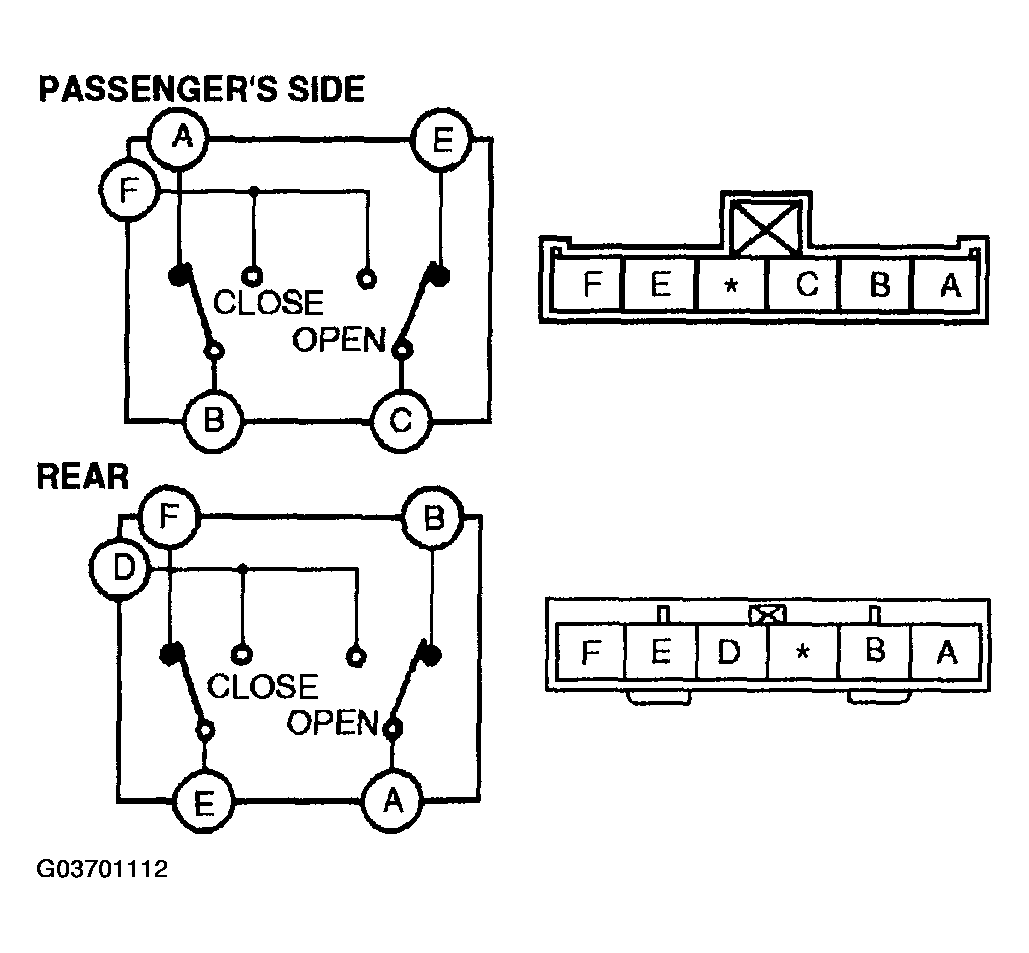

Fig 1: Checking Continuity Between Power Window Subswitch Terminals
Courtesy of MAZDA MOTORS CORP.

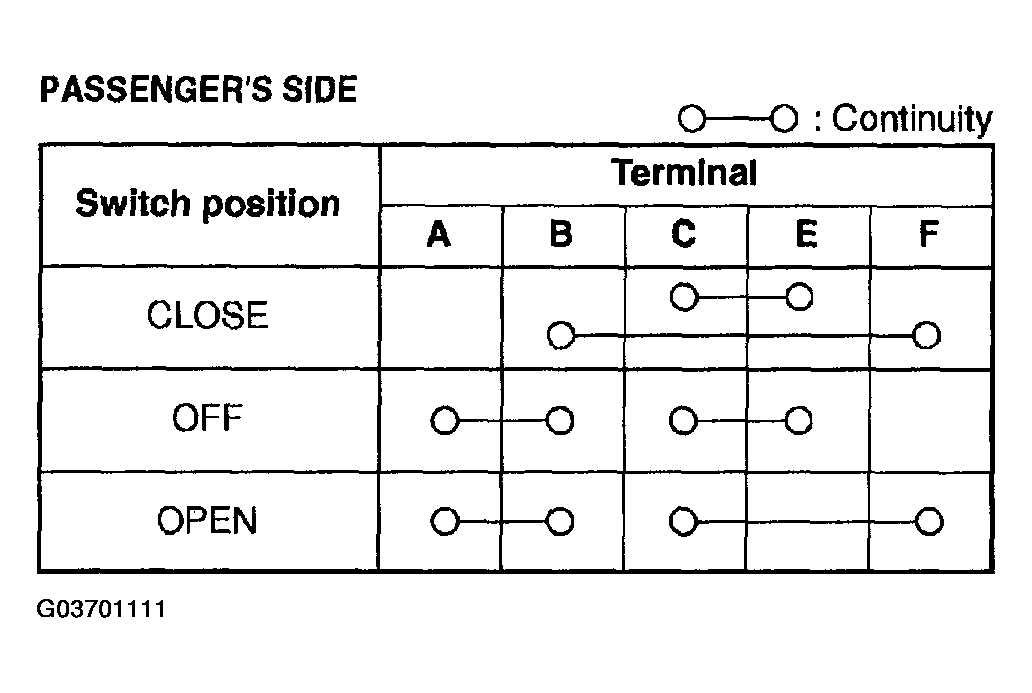

Fig 2: Continuity Between Power Window Subswitch Terminals Chart - Passenger's Side
Courtesy of MAZDA MOTORS CORP.

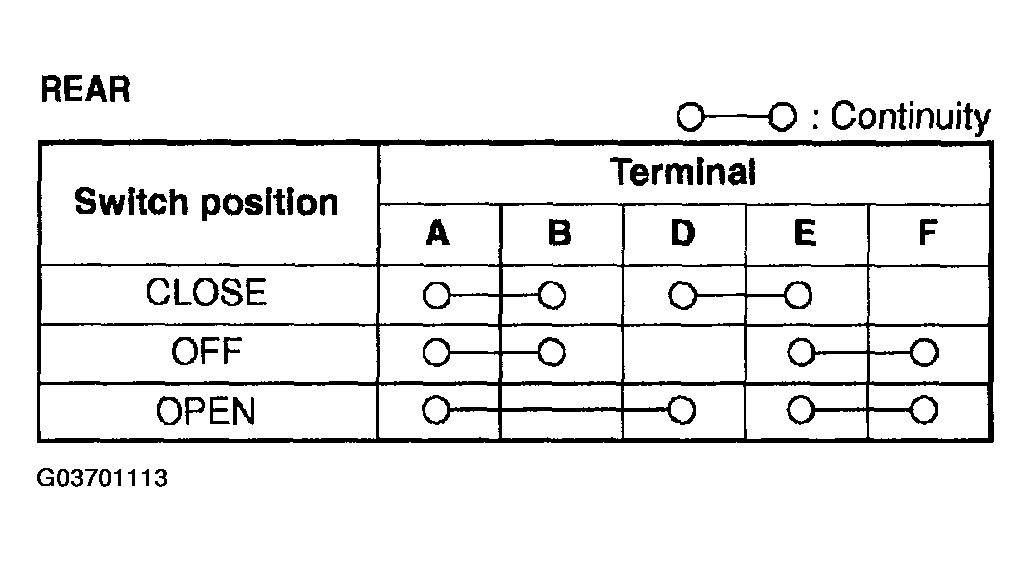

Fig 3: Continuity Between Power Window Subswitch Terminals Chart - Rear
Courtesy of MAZDA MOTORS CORP.
