Rearview Mirror Removal

  1. Insert a flathead screwdriver between the mirror and the base.
  2. Push the base pin down to remove the rear view mirror.

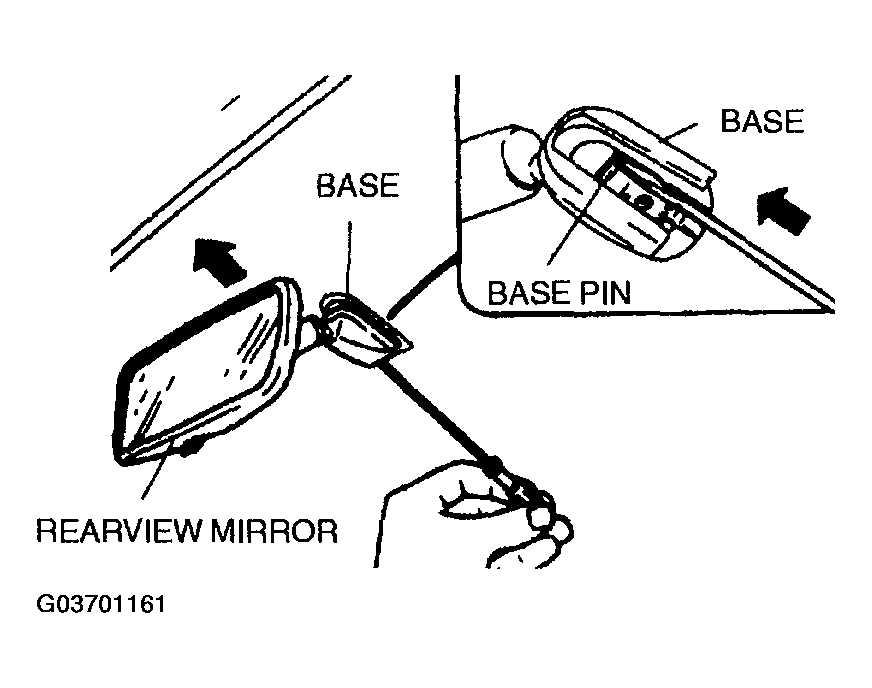

    Fig 1: Inserting Flathead Screwdriver Between Mirror And Base
    G03701161Courtesy of MAZDA MOTORS CORP.
