Windshield Removal: Notes
- Remove the rearview mirror. (See
REARVIEW MIRROR REMOVAL .)
- Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION
.)
- Remove the headliner. (See HEADLINER REMOVAL/INSTALLATION
.)
- Apply protective tape along the edge of the body to protect it from damage.
- Apply protective tape to the dashboard to protect it from damage.
WARNING:
- Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
NOTE:
- The windshield molding is a replacement part.
Courtesy of MAZDA MOTORS CORP.

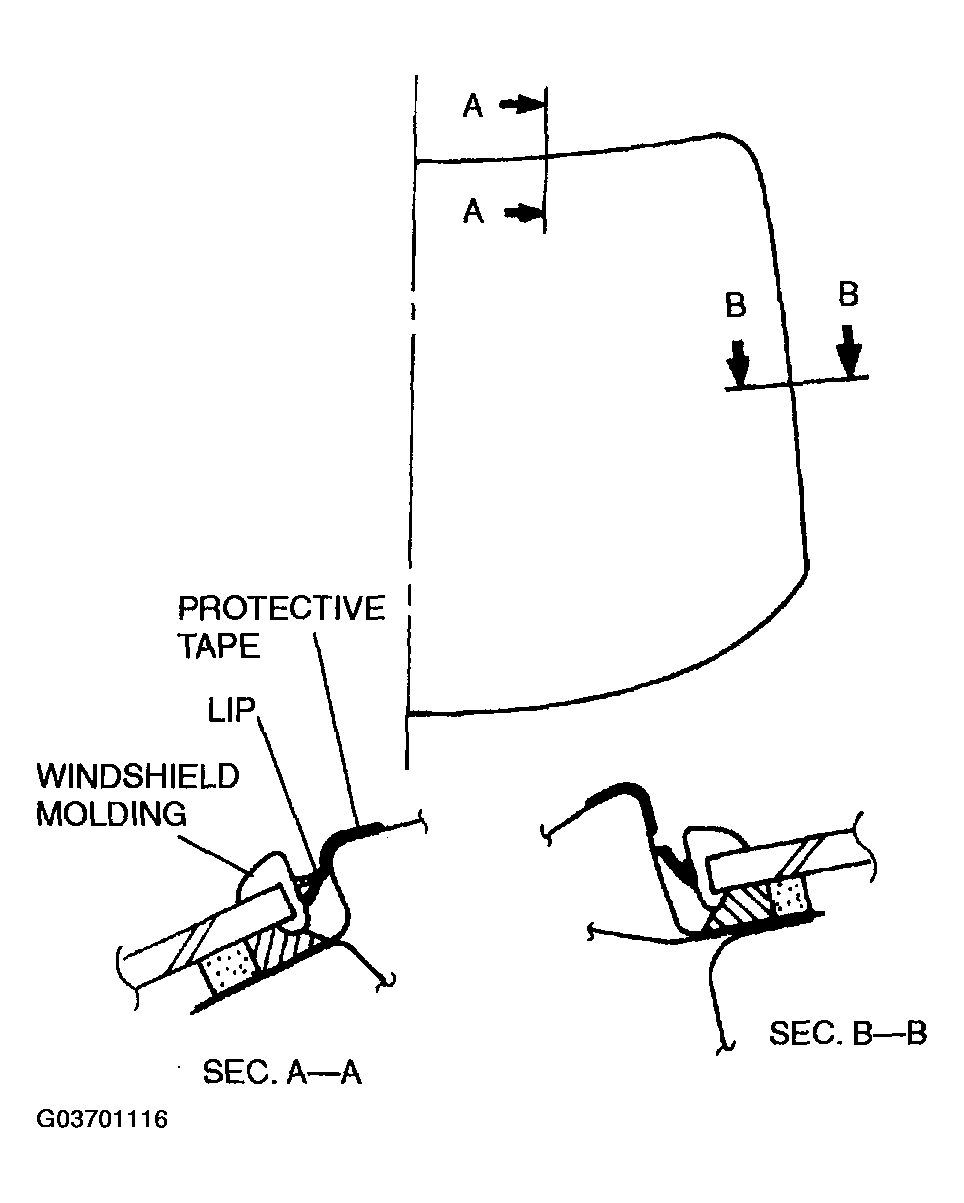

- Cut the lip of the windshield molding using a razor.
