Battery Removal/Installation

  1. Remove in the order indicated in the table.

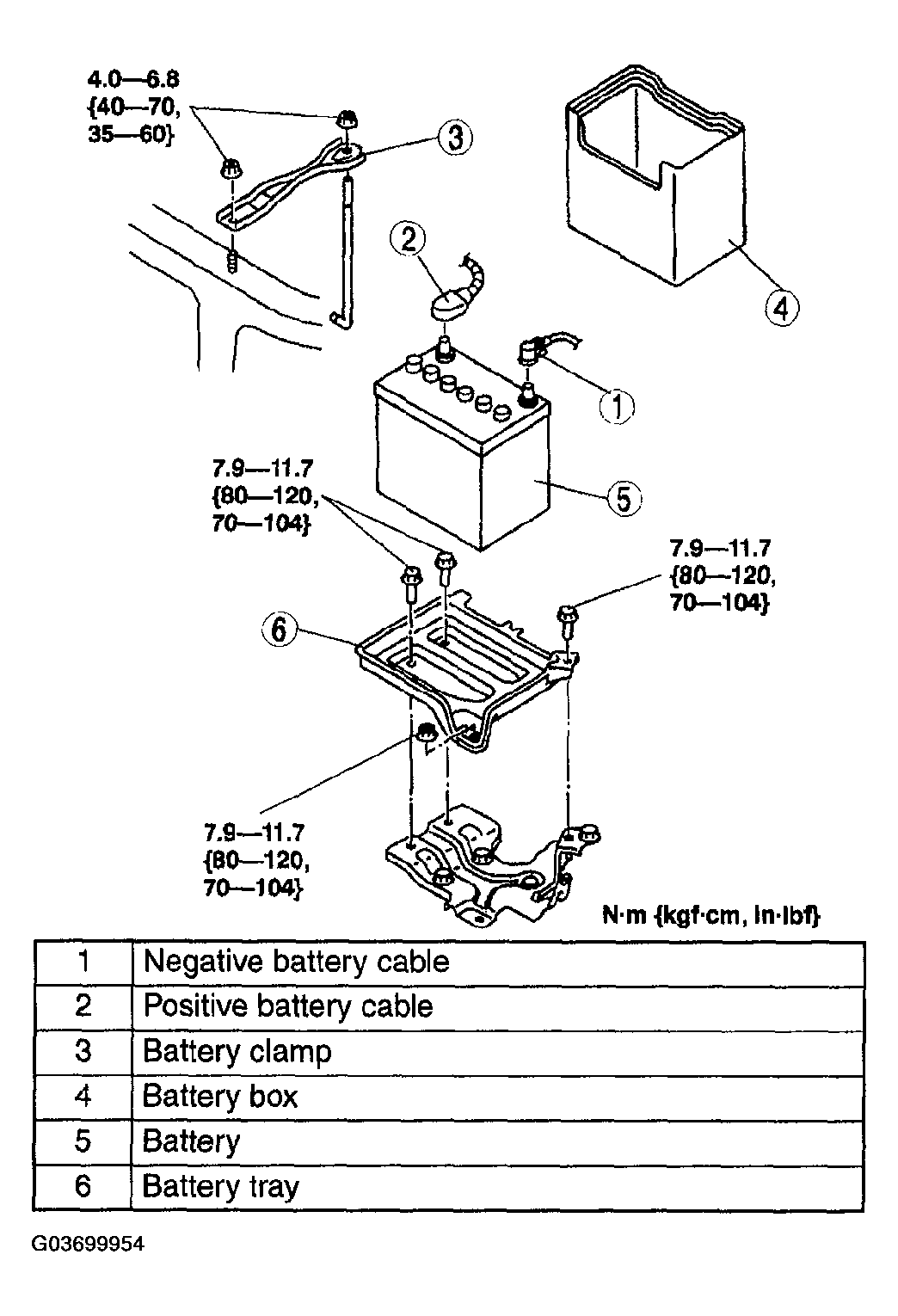

    Fig 1: Removing Battery Components In Order
    G03699954Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
