Generator Inner Parts: Brush

• If any brush is worn almost to or beyond the limit, replace all of the brushes.

Standard

1. 22.5 mm {0.89 in}

Minimum

1. 5.0 mm {0.20 in}

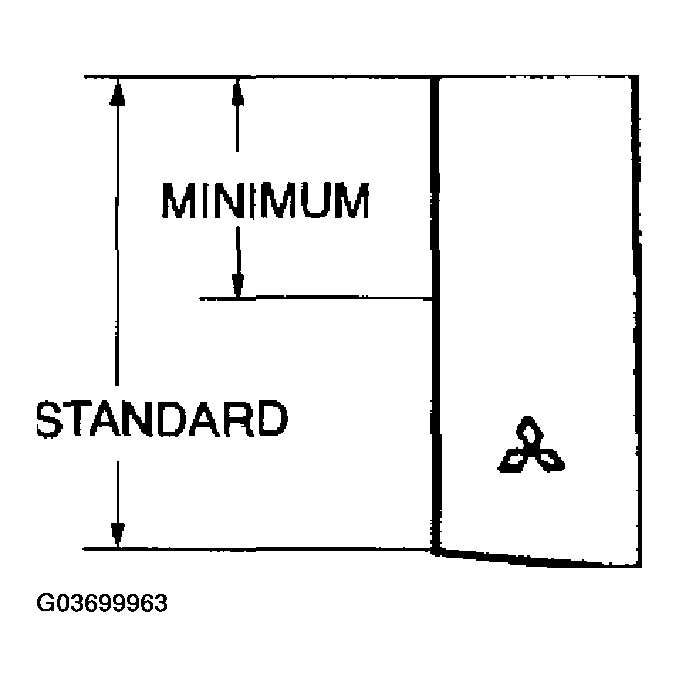

Fig 1: Inspecting Brushes For Wear

Courtesy of MAZDA MOTORS CORP.
