No Load Test

  1. Verify that the battery is fully charged.
  2. Connect the starter, battery, voltmeter and ammeter as shown.
  3. Operate the starter and verify that it rotates smoothly.
  4. Measure the voltage and current while the starter is operating.
    • If not as specified, repair or replace the starter as necessary.

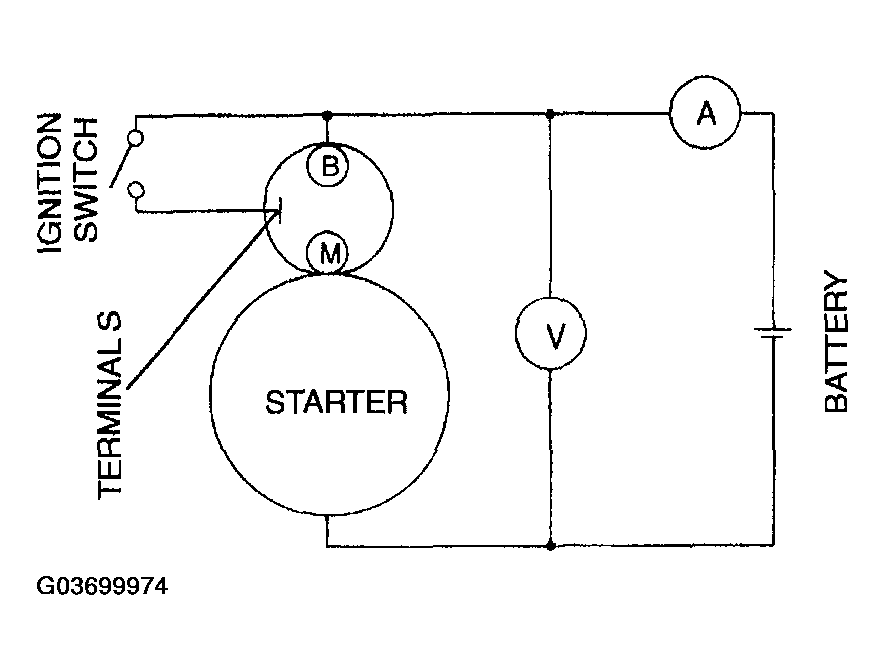

    Fig 1: Measuring Voltage And Current While Starter Is Operating
    G03699974Courtesy of MAZDA MOTORS CORP.

    Specification

    VOLTAGE SPECIFICATION

    Voltage (V) 11
    Current (A) Below 90
