Inspection Using An Oscilloscope (Reference)
>>
Torque reduction request signal
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Torque reduction request signal
PCM terminal: 91 (+)-100 (-)
Oscilloscope setting: 1V/DIV (Y), 2ms/DIV (X), DC range
Vehicle condition: idle after warm up

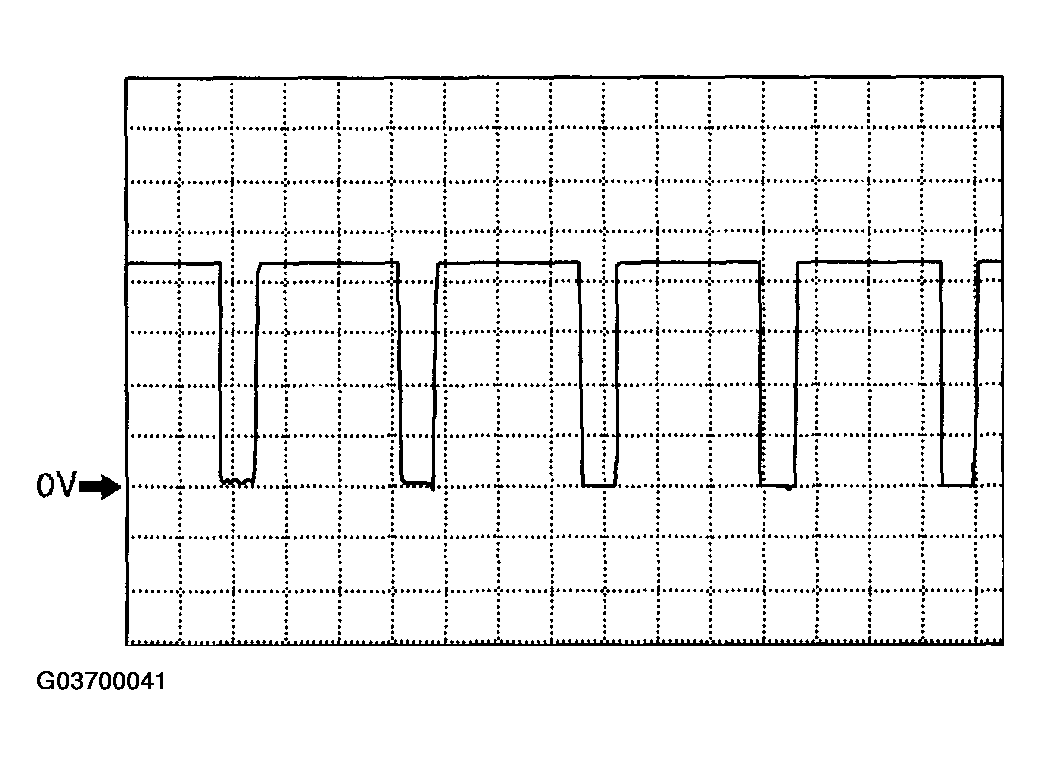

Fig 1: Identifying Oscilloscope Graph Torque Reduction Request Signal
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
