Vehicle speed signal

PCM terminal: 79 (+)-22 (-)
Oscilloscope setting: 1V/DIV (Y), 25ms/DIV(X), DC range
Vehicle condition: Driving speed 60 km/h [37 mph]

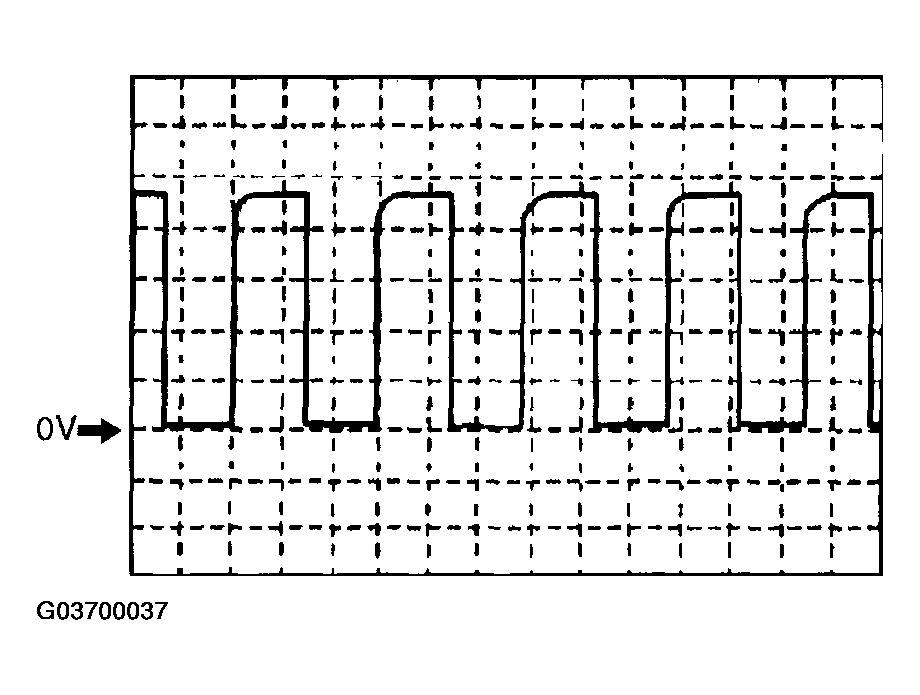

Fig 1: Identifying Oscilloscope Graph Vehicle Speed Signal
Courtesy of MAZDA MOTORS CORP.
