DTC P0132, P0152: Notes

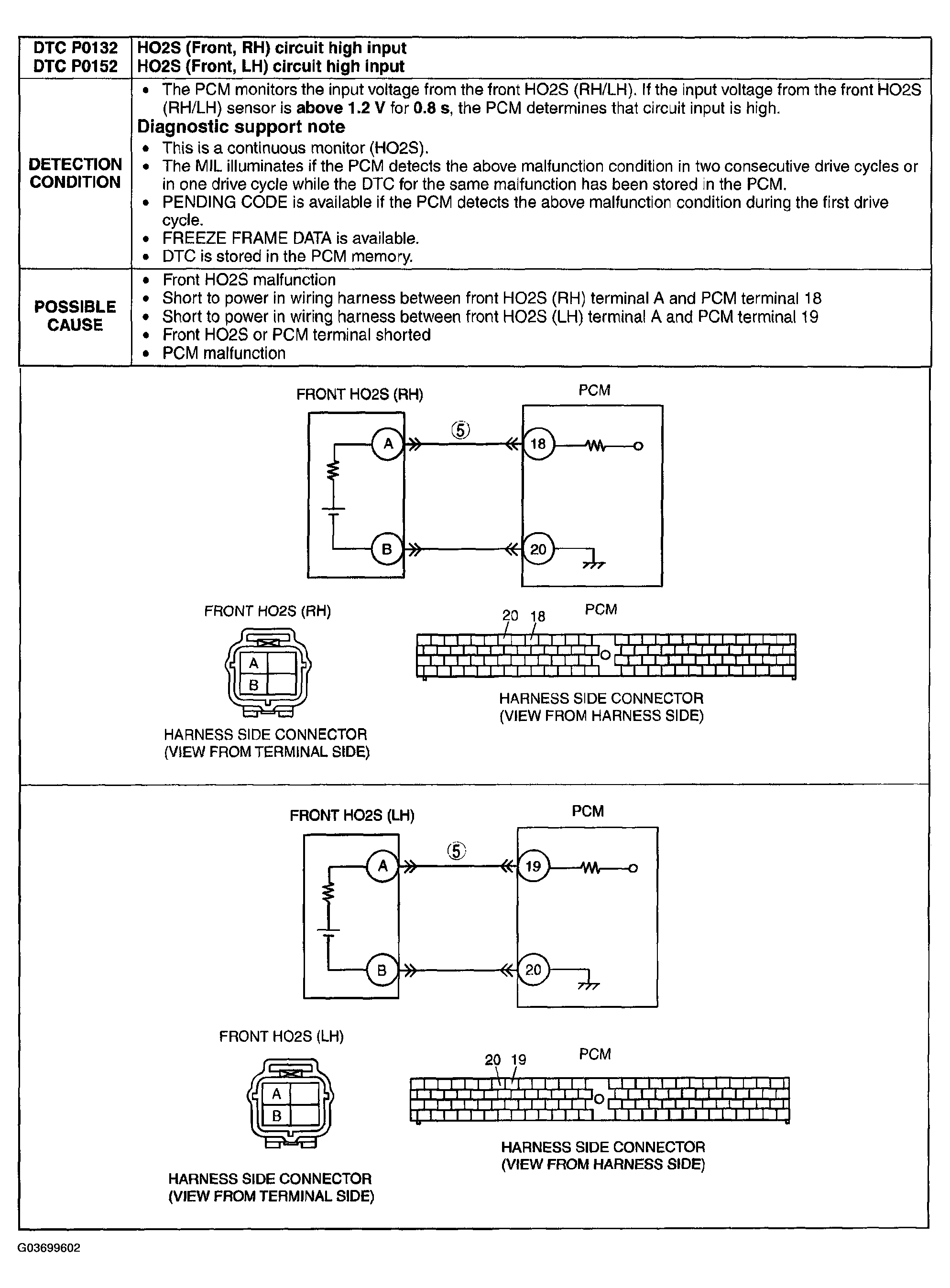

Fig 1: DTC P0132, P0152 - Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
