DTC P0134, P0154: Notes

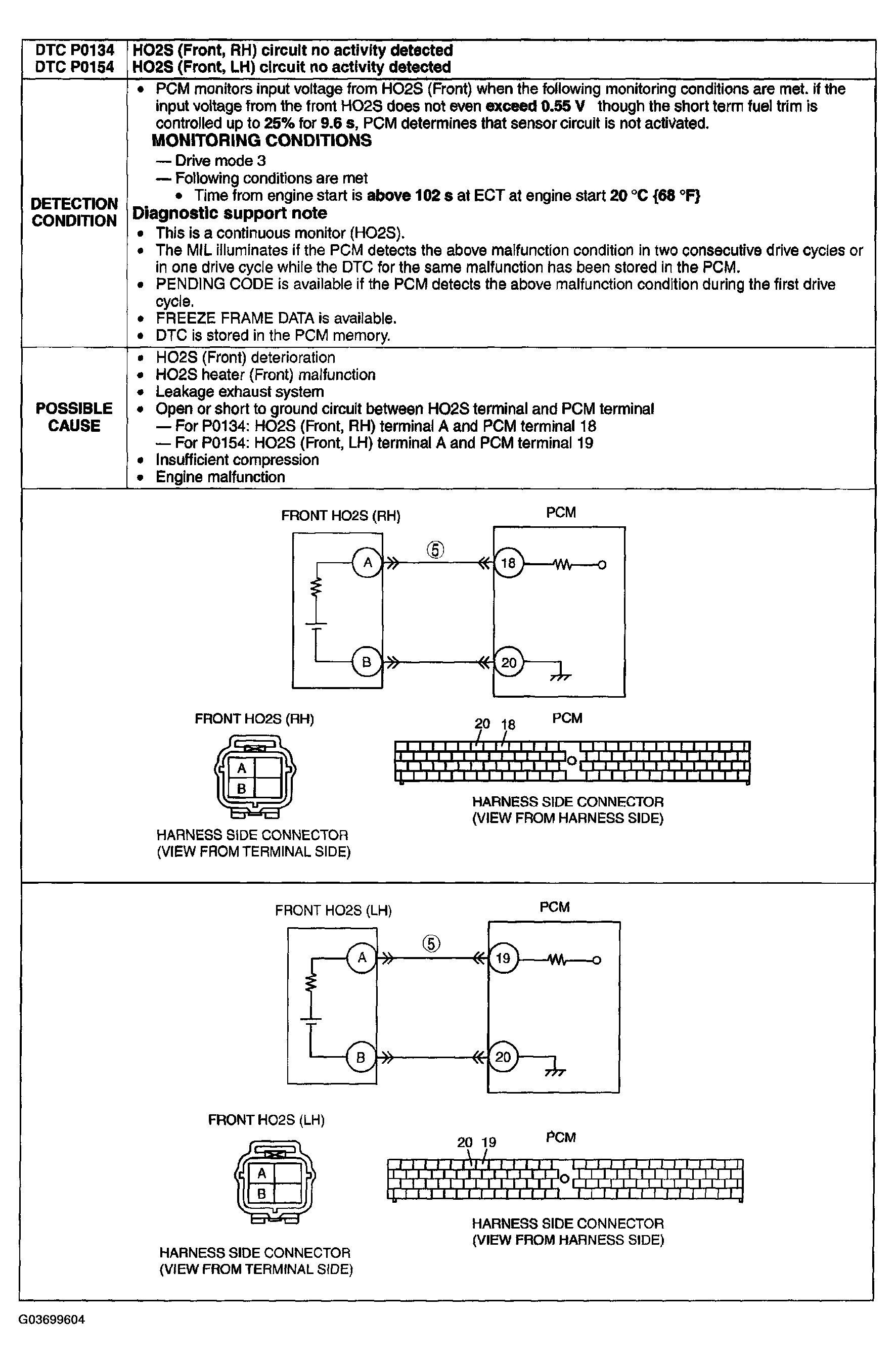

Fig 1: DTC P0134, P0154 - Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
