Mazda
>>
2005
>>
MPV ES
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic (Engine Control System AJ]
>>
DTC P0401
>>
With Rear H02S Model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
With Rear H02S Model

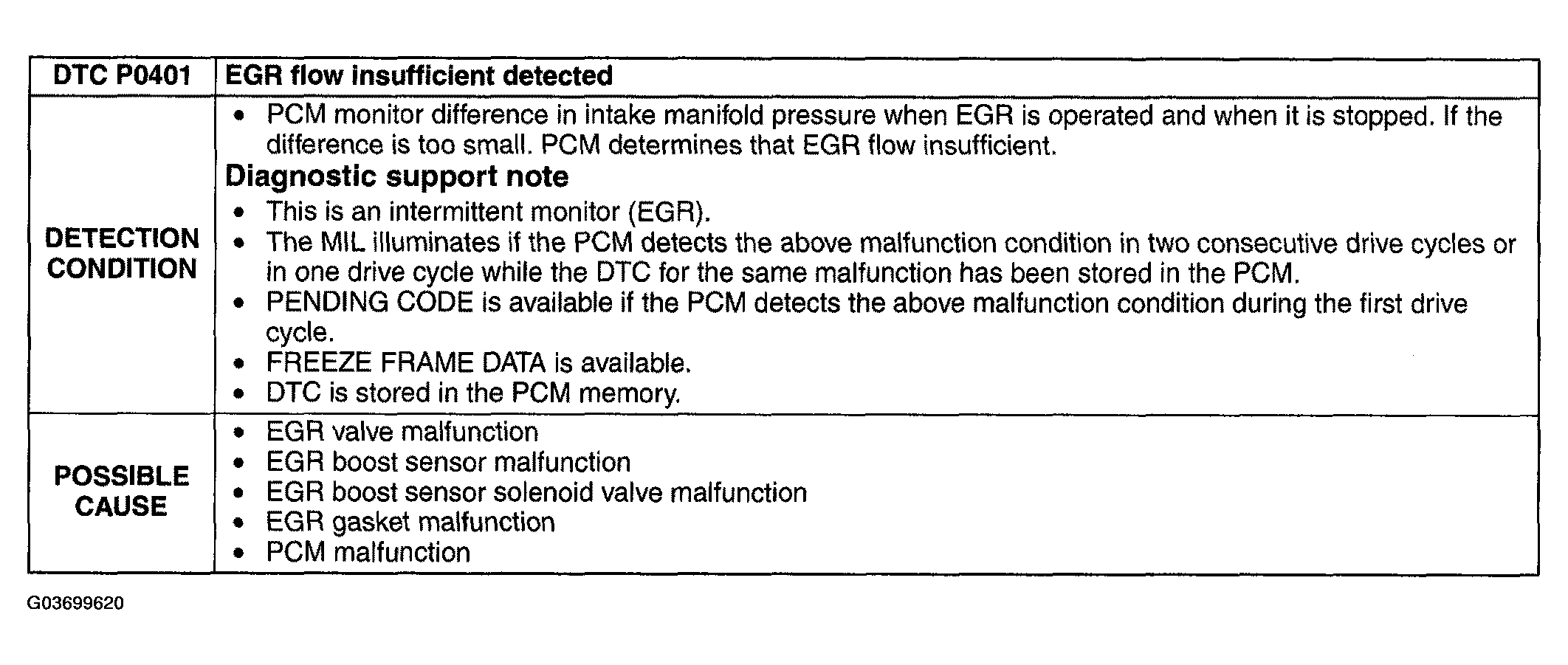

Fig 1: DTC P0401 - Detection Condition And Possible Cause (With Rear H02S Model)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
