DTC P0500: Notes

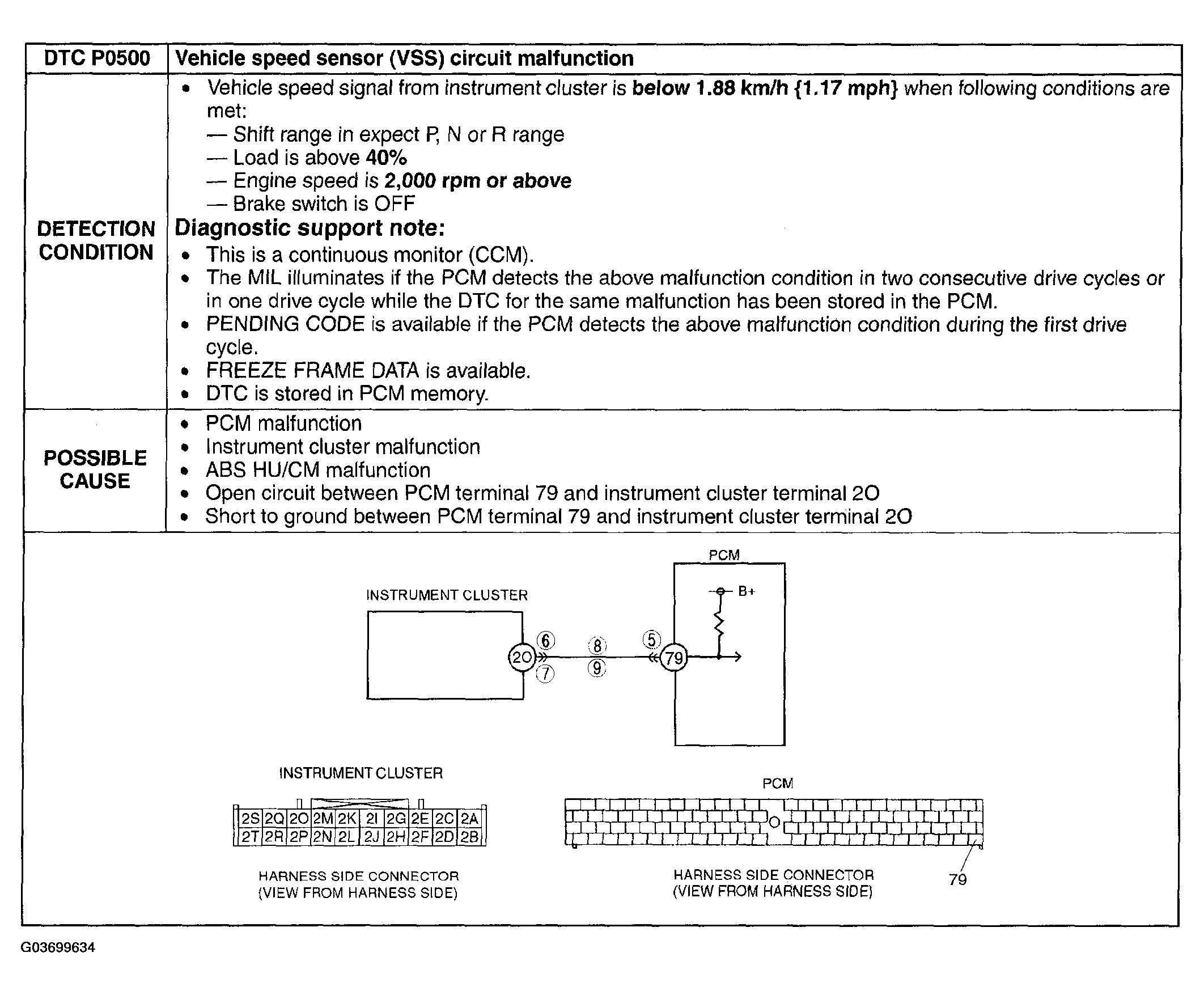

Fig 1: DTC P0500 - Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
