DTC P2145: Notes

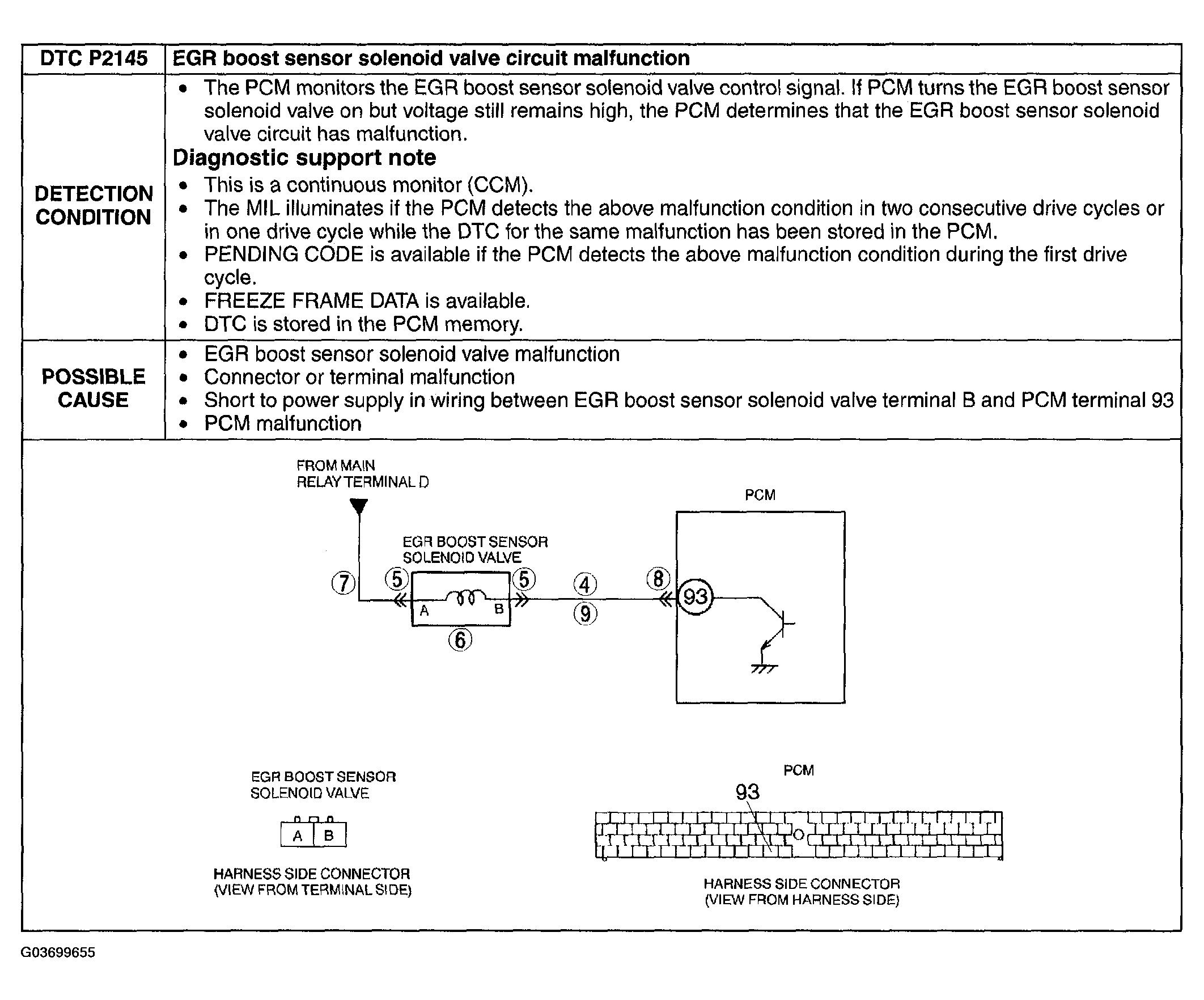

Fig 1: DTC P2145 - Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
