DTC P2196, P2198: Notes

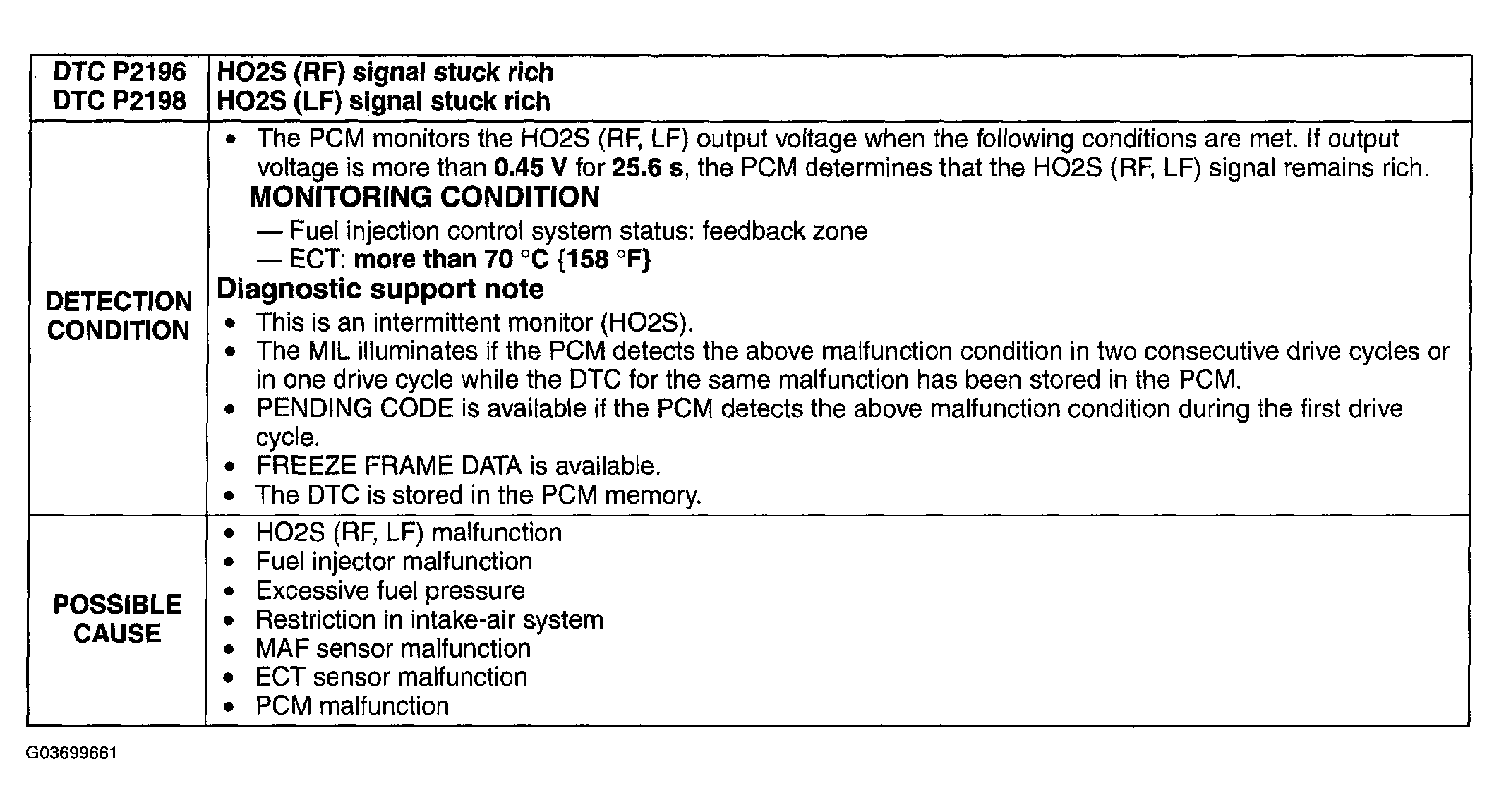

Fig 1: DTC P2196, P2198 - Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
