DTC P2504: Notes

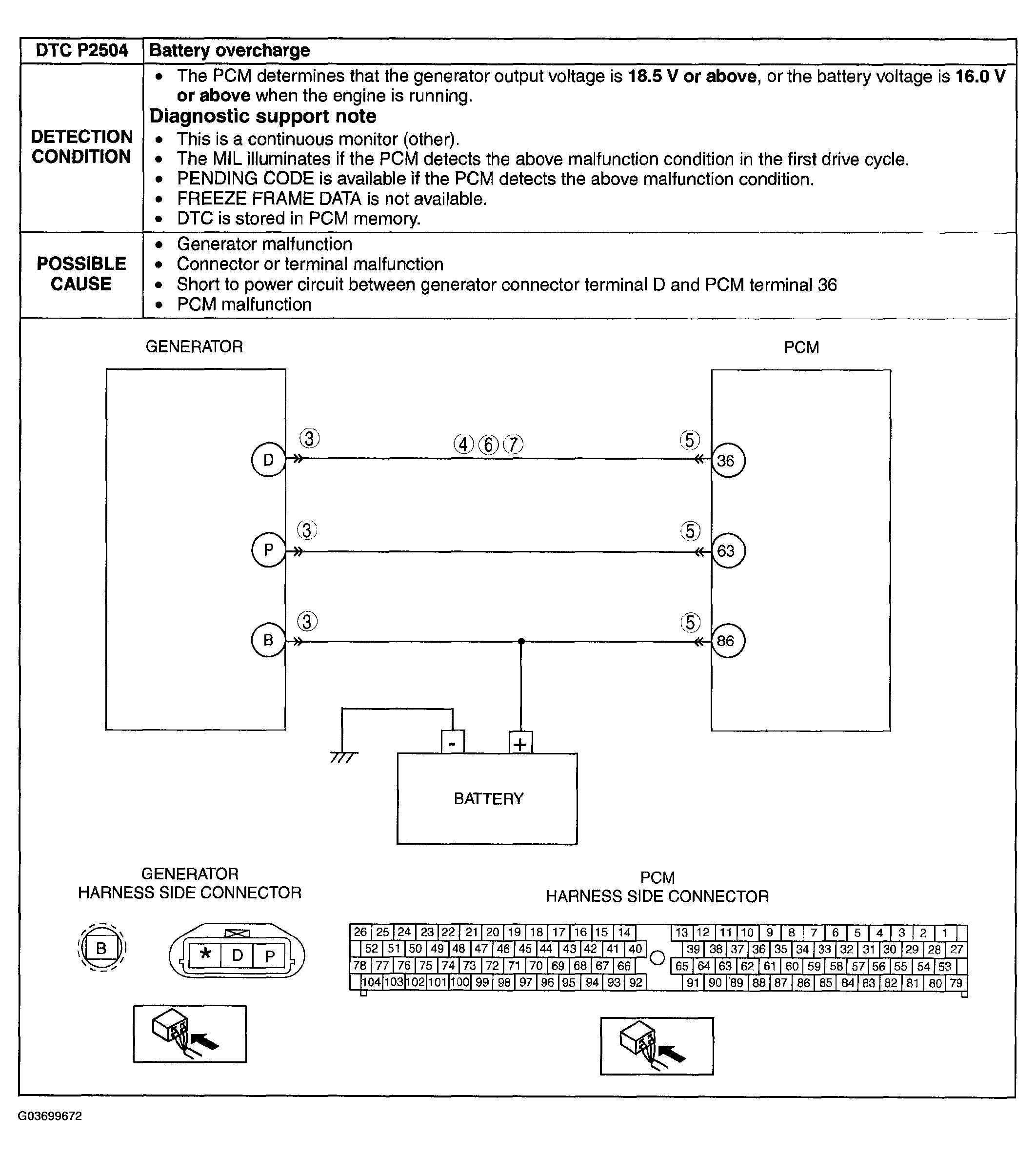

Fig 1: DTC P2504 - Detection Condition And Possible Cause
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
