Ignition Coil Removal/Installation

Disconnect the negative battery cable.
LH: Remove the plug hole plate. (See TIMING CHAIN REMOVAL/INSTALLATION ).
RH: Remove the dynamic chamber. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).
Remove in the order indicated in the table.

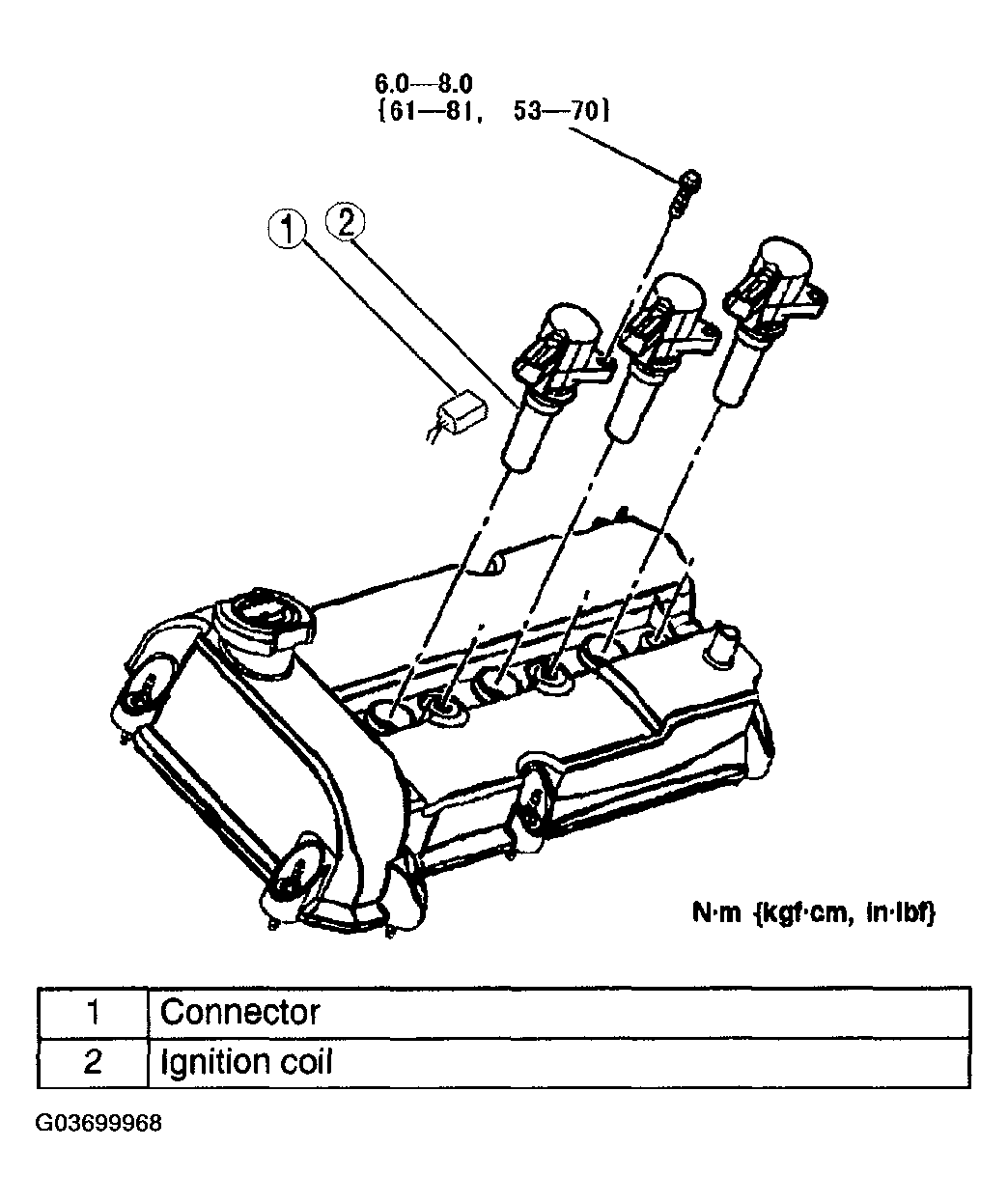

Fig 1: Removing Ignition Coil Components In Order
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
- Apply a light film of silicon brake caliper grease and dielectric compound to the interior of the spark plug boot prior to installation.
