Accessory Socket Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Connect a tester as shown and verify that there is continuity. See Fig 1.
- If the continuity cannot be verified, replace the accessory socket.

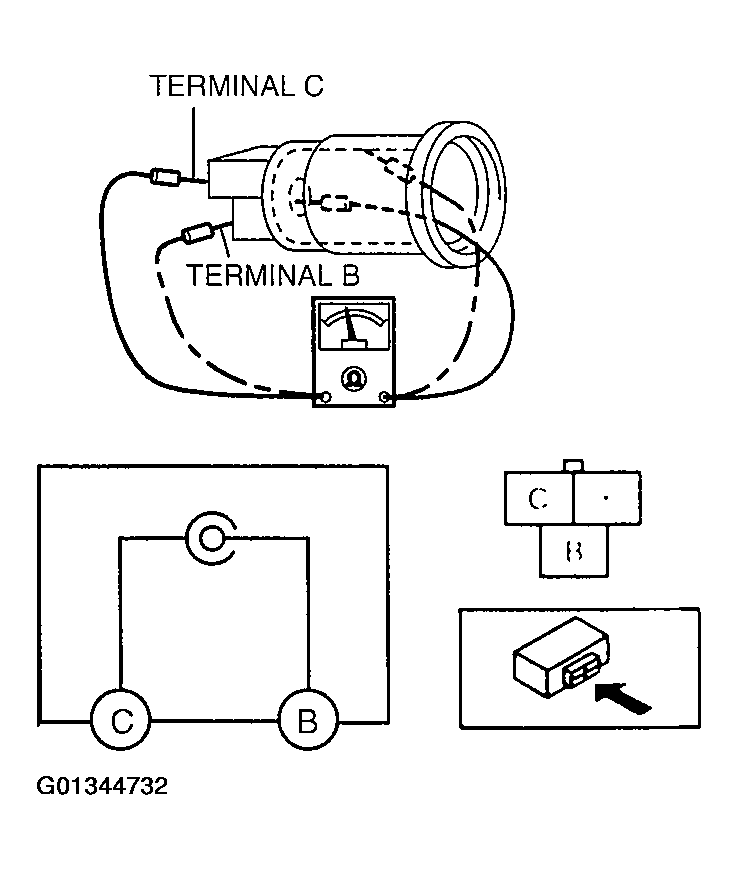

Fig 1: Inspecting Accessory Socket
Courtesy of MAZDA MOTORS CORP.
