Accessory Socket Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

While pressing a tape-wrapped Flathead screwdriver against the cap projection, pull the accessory socket outward.

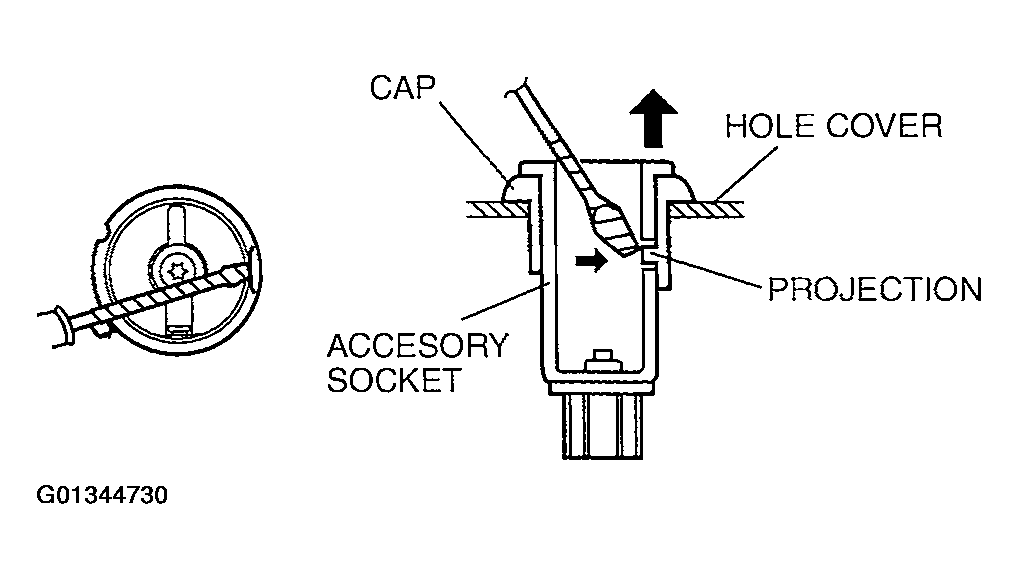

Fig 1: Removing Socket
Courtesy of MAZDA MOTORS CORP.
