Accessory Socket Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the hole cover. (See CONSOLE REMOVAL/INSTALLATION .)
Remove in the order indicated. See Fig 1 .

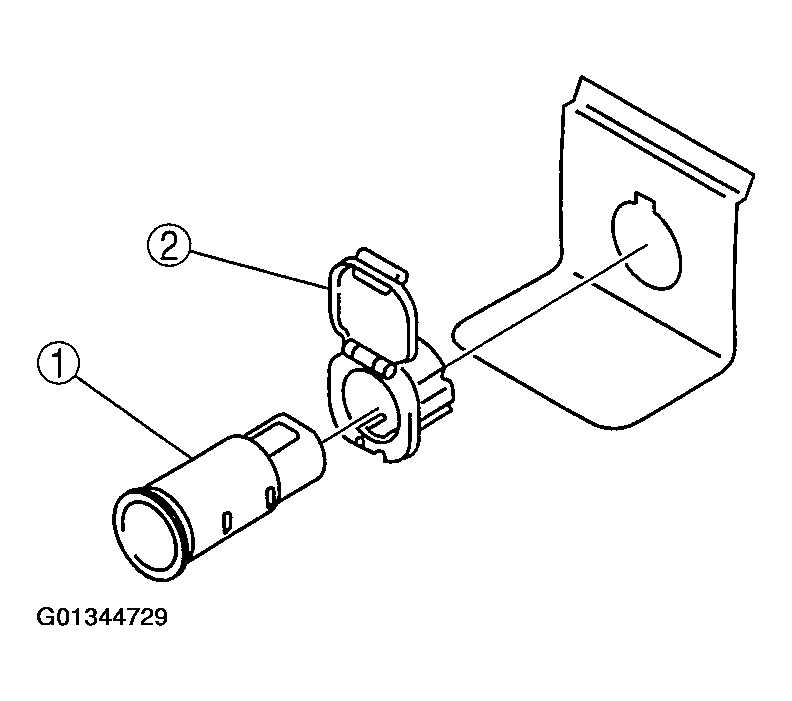

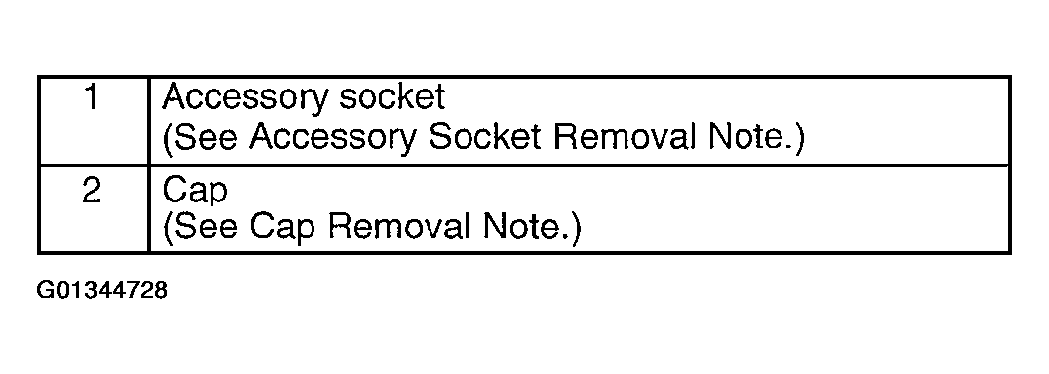

Fig 1: Removal Order Of Accessory Socket
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

Fig 2: Removing/Installing Accessory Socket
Courtesy of MAZDA MOTORS CORP.
