Audio Control Switch Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the driver-side air bag module. (See DUAL-STAGE DRIVER-SIDE AIR BAG MODULE .)
Disconnect the audio control switch connector.
Verify the resistance and continuity between the audio control switch terminals.
- If the resistance and continuity are not as indicated, replace the audio control light switch.

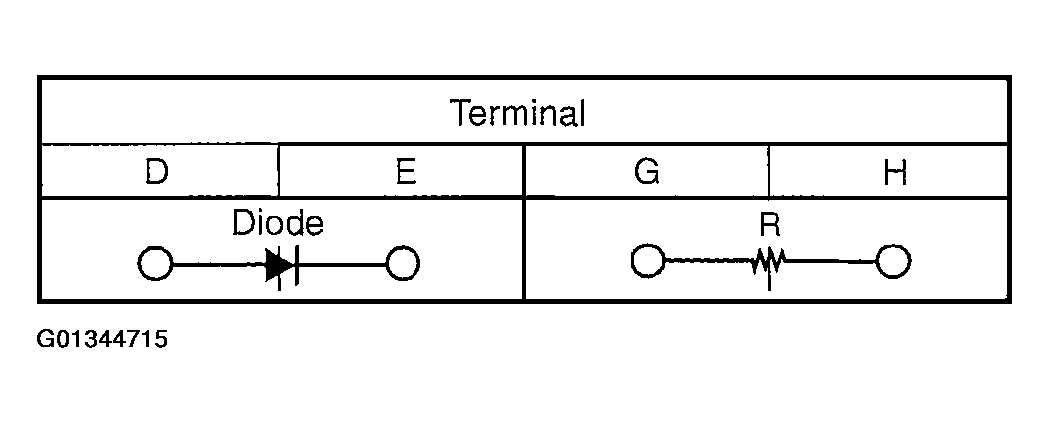

Fig 1: Checking Audio Control Switch Terminal Continuity
Courtesy of MAZDA MOTORS CORP.

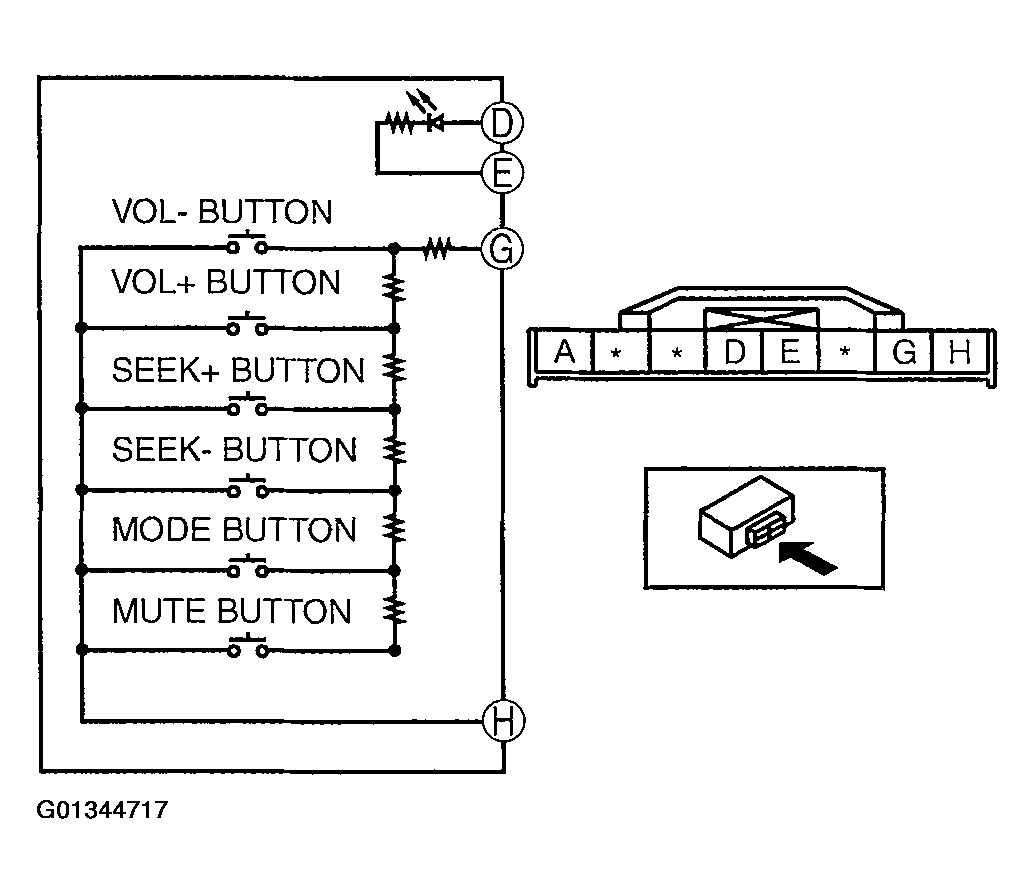

Fig 2: Identifying Audio Control Switch Terminals Connection
Courtesy of MAZDA MOTORS CORP.

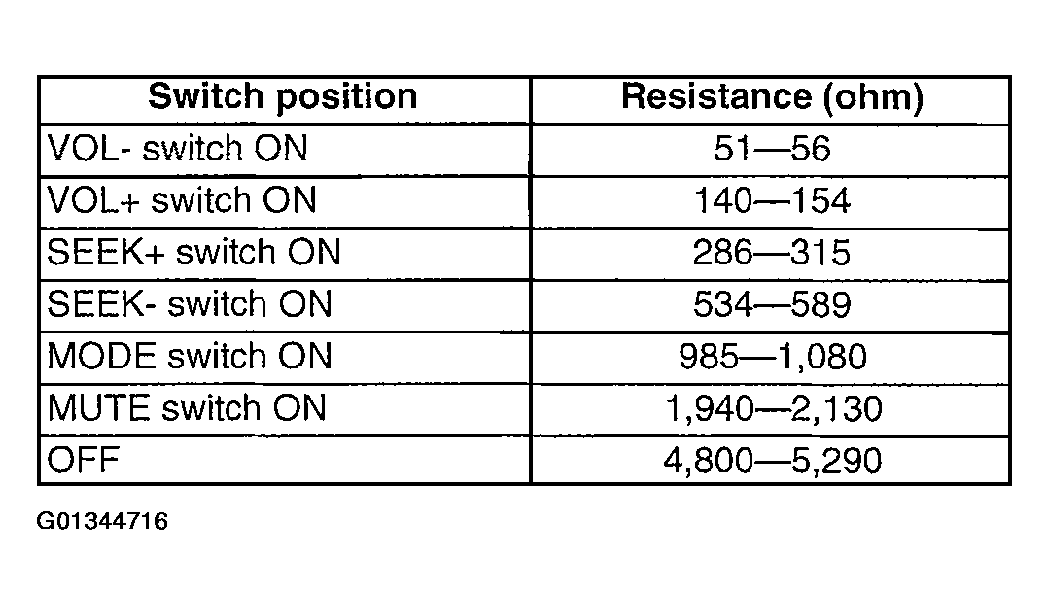

Fig 3: Audio Control Switch Resistance Specification
Courtesy of MAZDA MOTORS CORP.
