Audio Control Switch Installation Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the audio control switch so that the audio control switch wiring harness passes behind the steering wheel. See Fig 1.

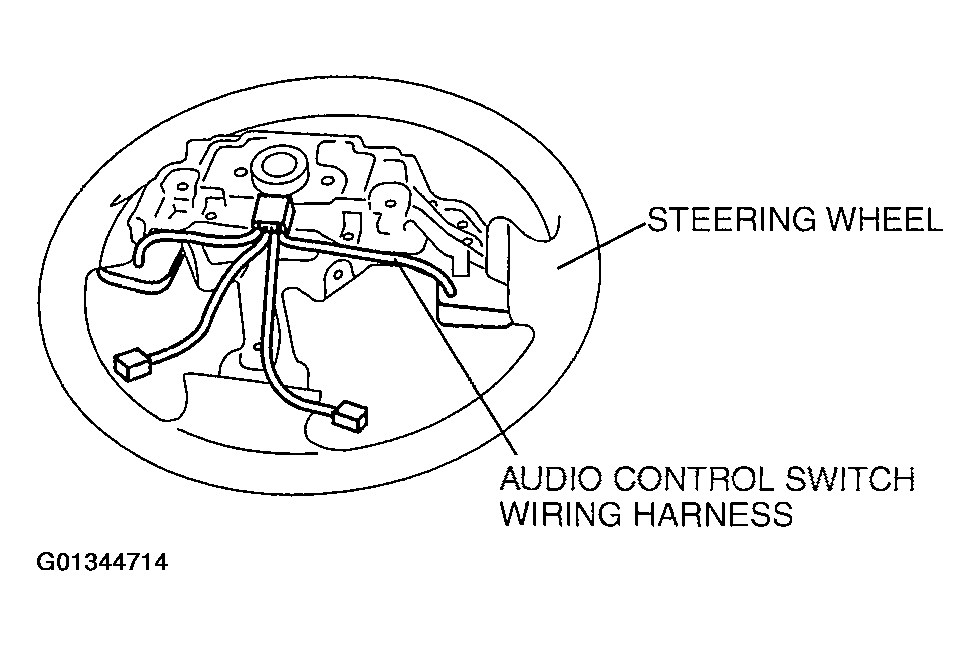

    Fig 1: Locating Audio Control Switch Wiring Harness
    G01344714Courtesy of MAZDA MOTORS CORP.
