Audio Unit Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated. See Fig 1.

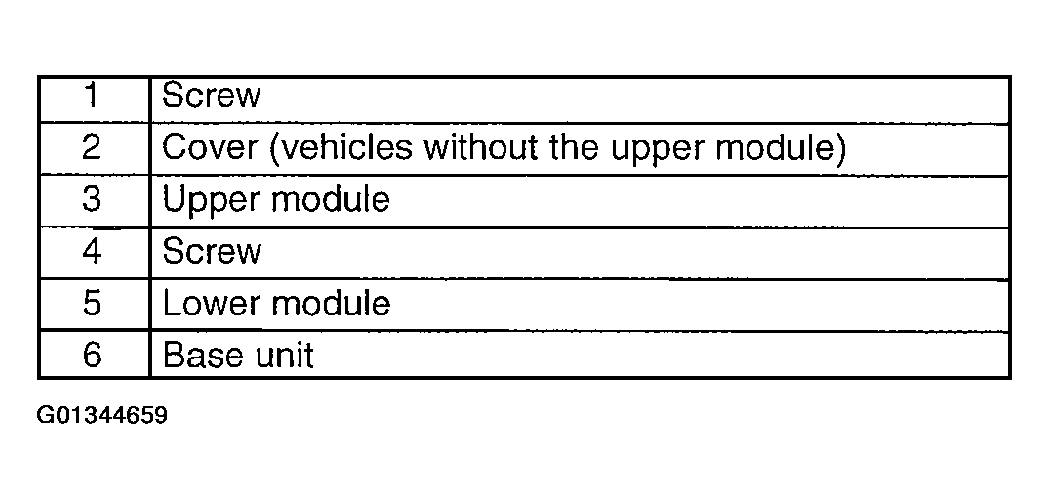

Fig 1: Disassembly Order Of Audio Unit
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.

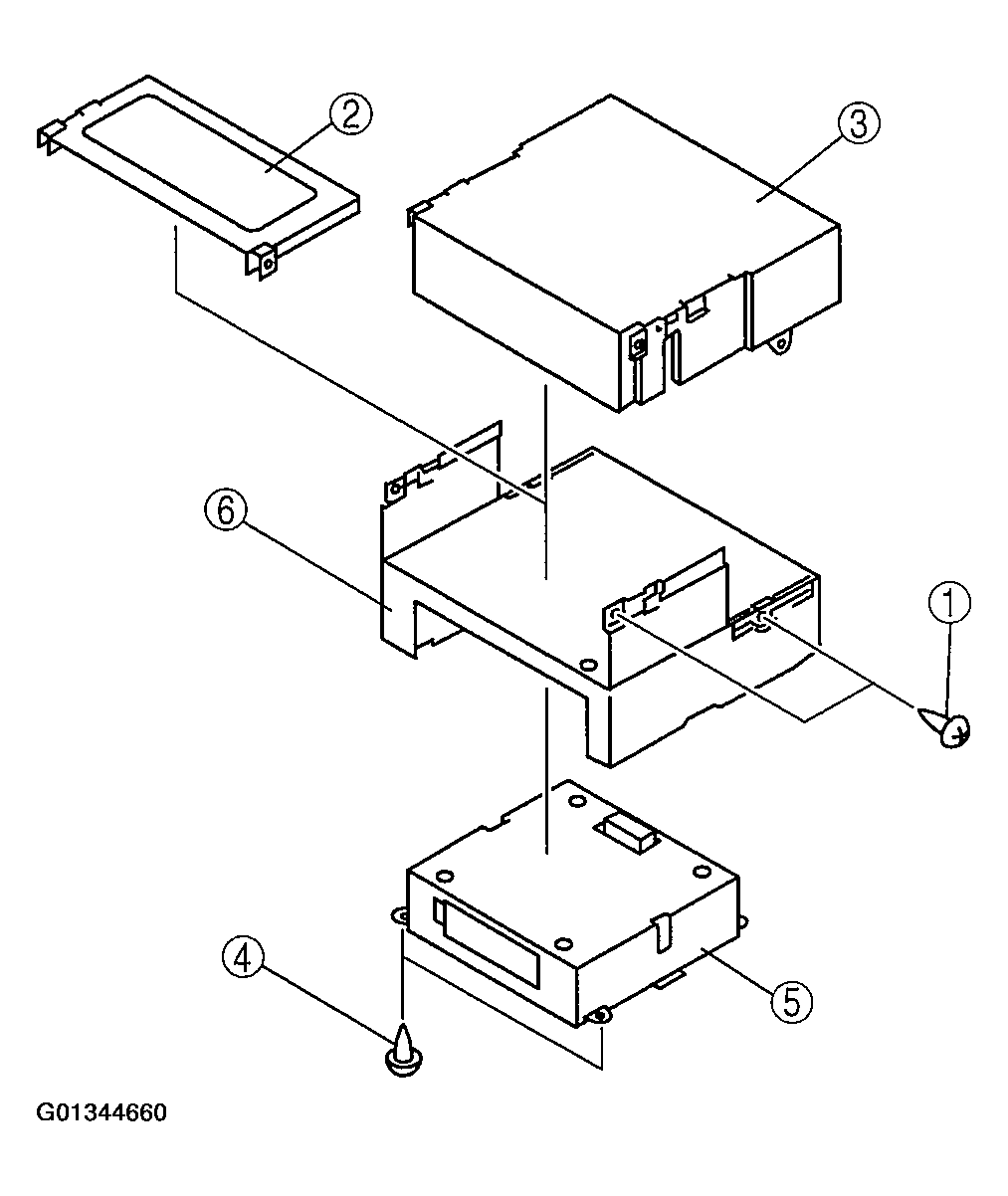

Fig 2: Disassembling/Assembling Audio Unit
Courtesy of MAZDA MOTORS CORP.
