Audio-Pilot Microphone Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

"Audio-Pilot" is a registered trademark of Bose Corporation.

Disconnect the negative battery cable.
Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION .)
Remove in the order indicated. See Fig 1.

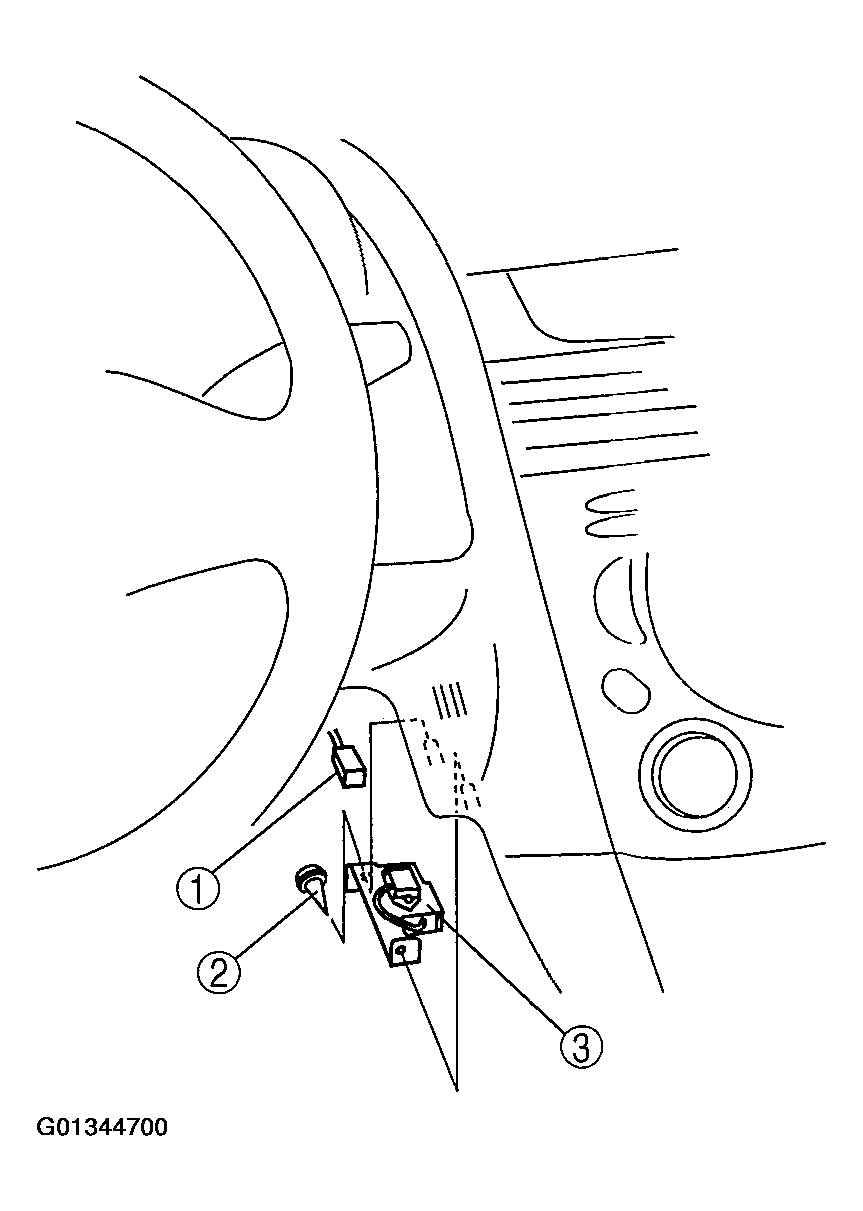

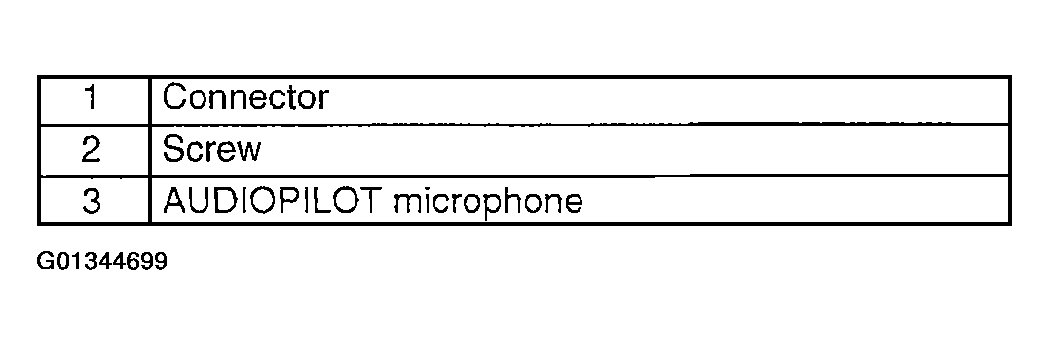

Fig 1: Removal Order Of Audio-Pilot Microphone
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

Fig 2: Removing/Installing Audio-Pilot Microphone
Courtesy of MAZDA MOTORS CORP.
