Center Panel Module Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Pull the center panel module outward, detach clip A from the dashboard, and then remove the center panel module.

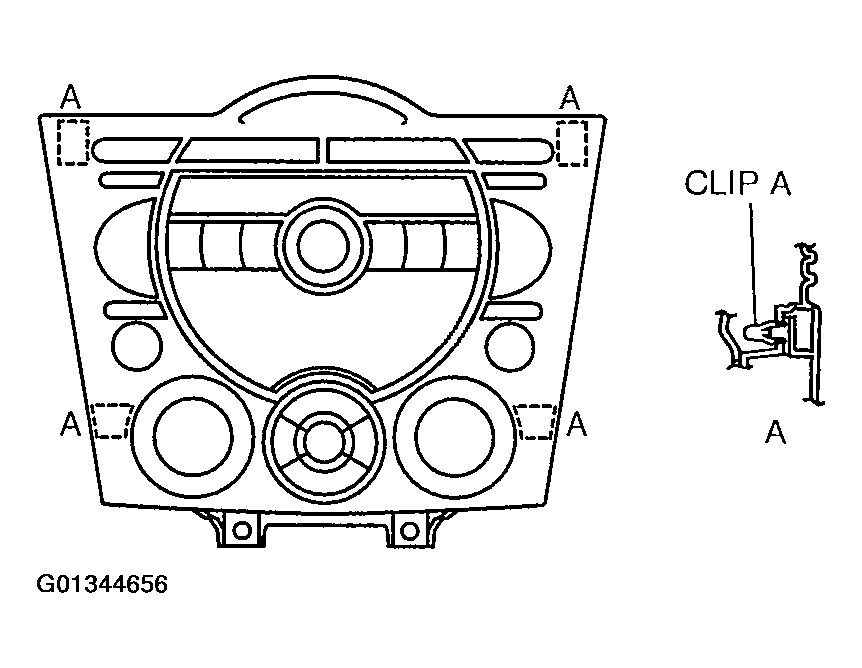

Fig 1: Locating Center Panel Module Clips
Courtesy of MAZDA MOTORS CORP.

Connector Removal Note

Put your hand through the opening where the ventilator grille was removed and disconnect the connectors.
CAUTION:
- When putting your hand through the opening, be careful not to contact the panel edge or sharp parts to avoid injury.
