Socket Removal Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

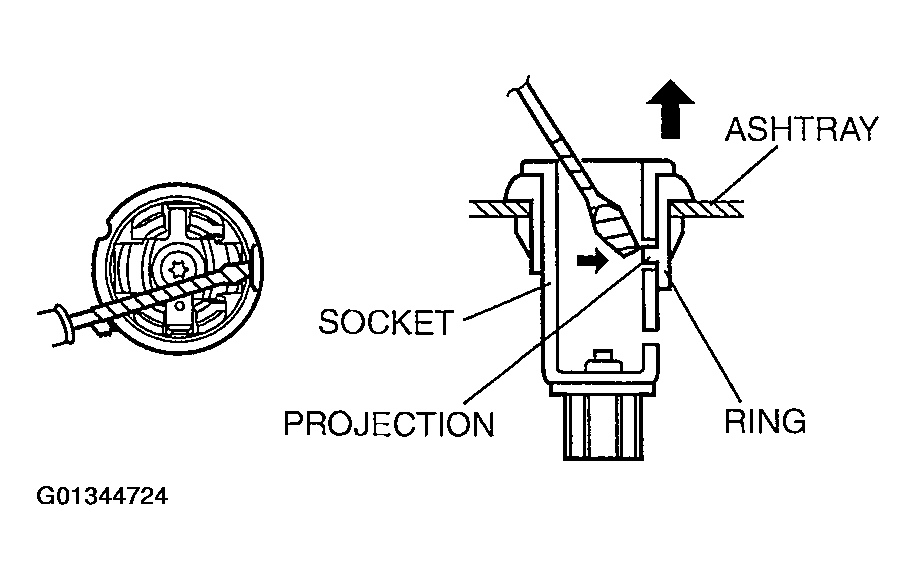

Insert a tape-wrapped Flathead screwdriver into the socket hole and push on the ring projection to lift the socket outward.

Fig 1: Removing Socket
Courtesy of MAZDA MOTORS CORP.

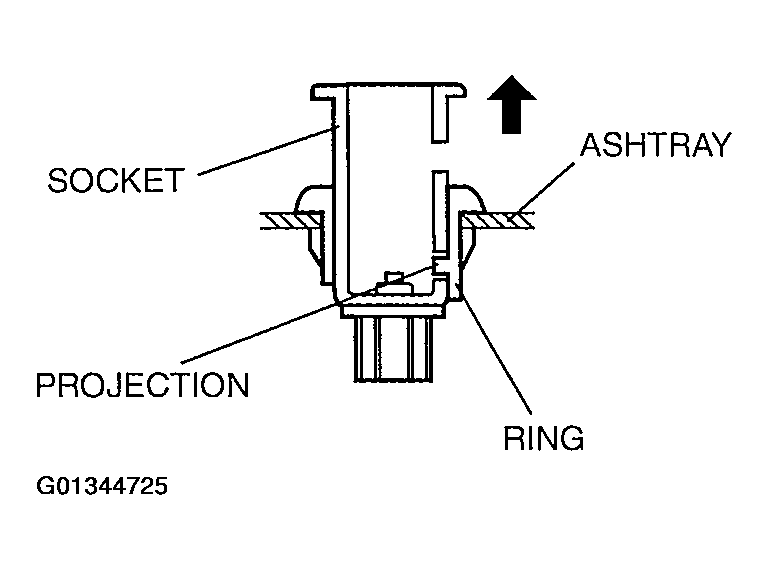

Lift out the socket until the ring projection locks into the lower socket hole as shown, See .

Fig 2: Locking Ring Projection Into Lower Socket Hole
Courtesy of MAZDA MOTORS CORP.

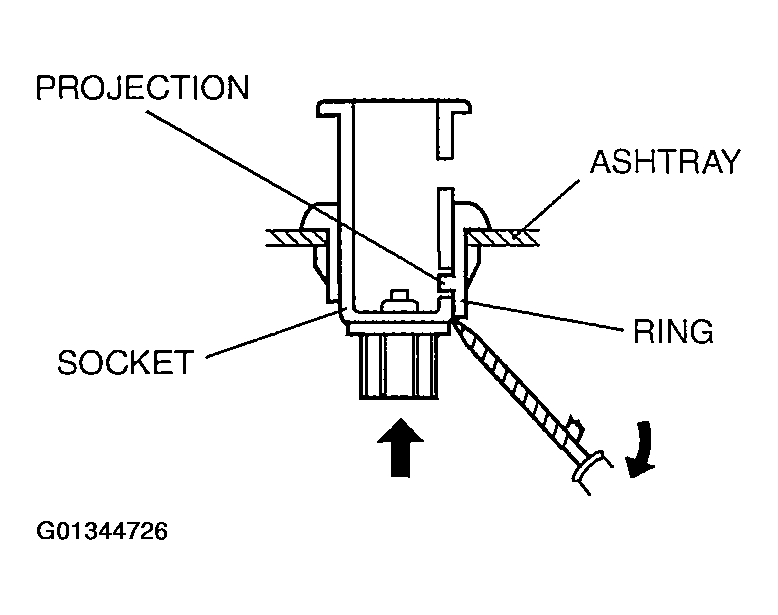

From the rear of the ashtray, insert a tape-wrapped Flathead screwdriver between the socket and the ring as shown. See Fig 3.
While lifting the ring projection with the Flathead screwdriver, push out and remove the socket.

Fig 3: Removing Socket Using Screwdriver
Courtesy of MAZDA MOTORS CORP.
