Front Door Speaker Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
Remove in the order indicated. See Fig 1.

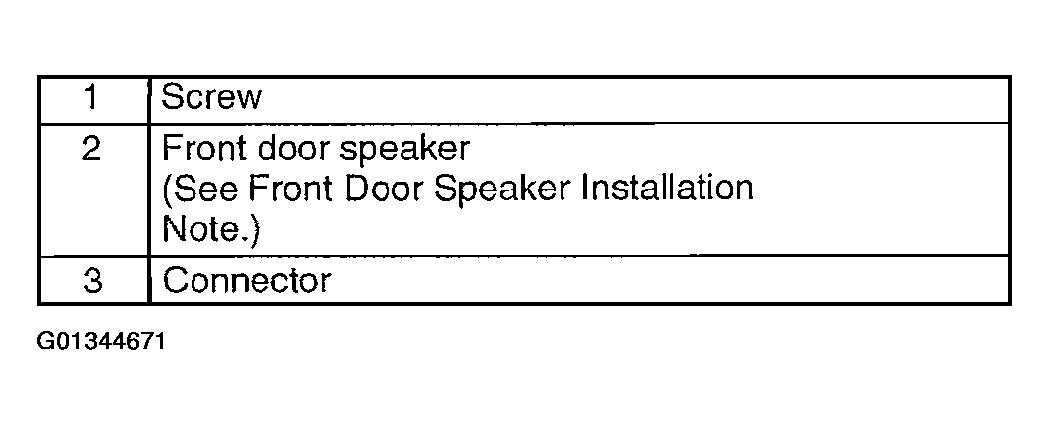

Fig 1: Removal Order Of Front Door Speaker
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

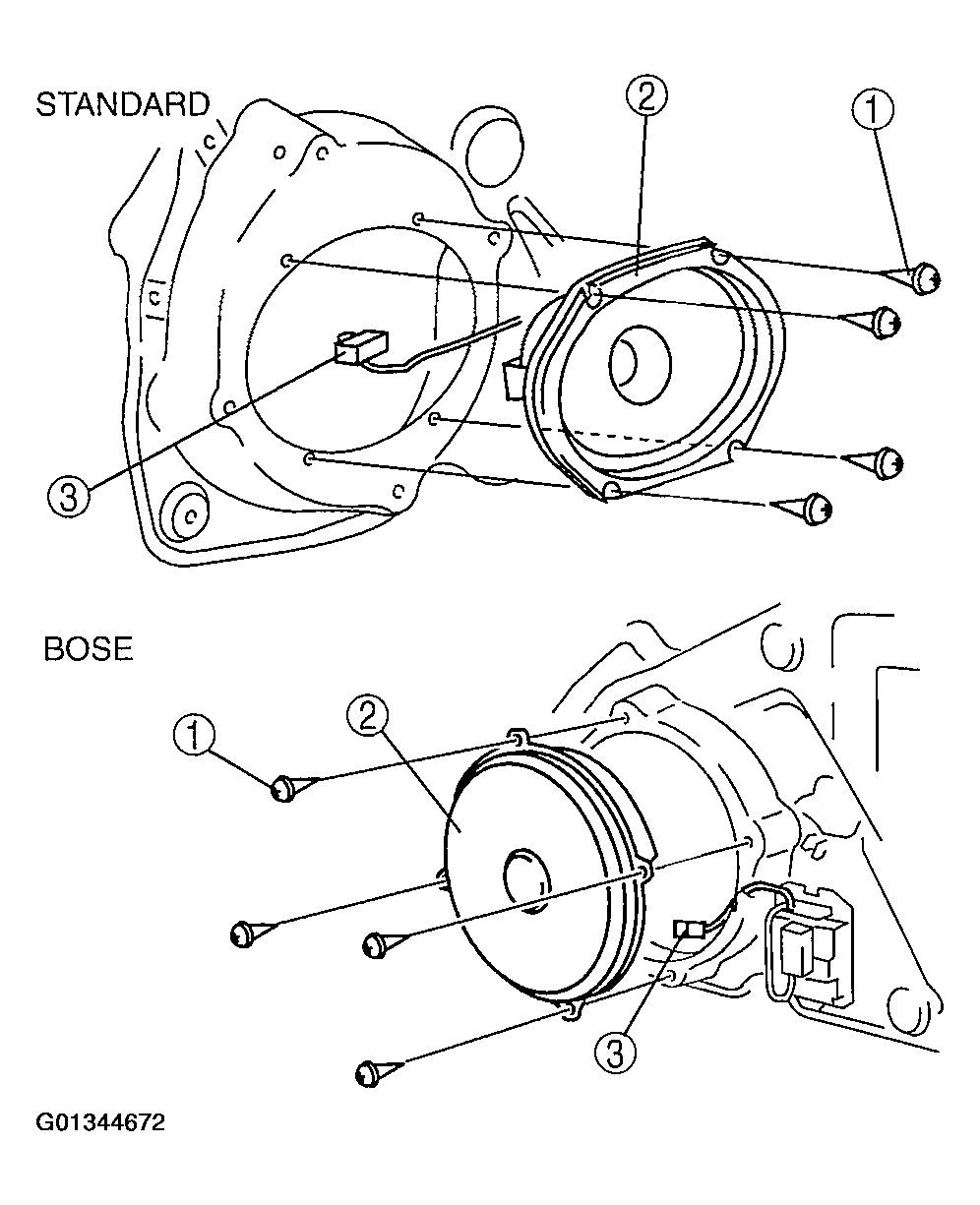

Fig 2: Removing/Installing Front Door Speaker
Courtesy of MAZDA MOTORS CORP.
