Front Tweeter Inspection: BOSE

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify that sound is output from the front door speaker.
    • If sound is output, go to the next step.
    • If no sound is not output, inspect the front door speaker and the related wiring harnesses.
  2. Remove the following parts:
    1. Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION .)
    2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
    3. Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    4. Remove the rear pillar trim. (See REAR PILLAR TRIM REMOVAL/INSTALLATION .)
    5. Remove the rear package center trim and the rear package side trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
    6. Remove the main amplifier. (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
  3. Verify that the continuity between the front tweeter and the main amplifier is as indicated. See Fig 1 .
    • If the continuity is not as indicated, repair or replace the related wiring harnesses.
    • If the continuity is as indicated, replace the front tweeter.

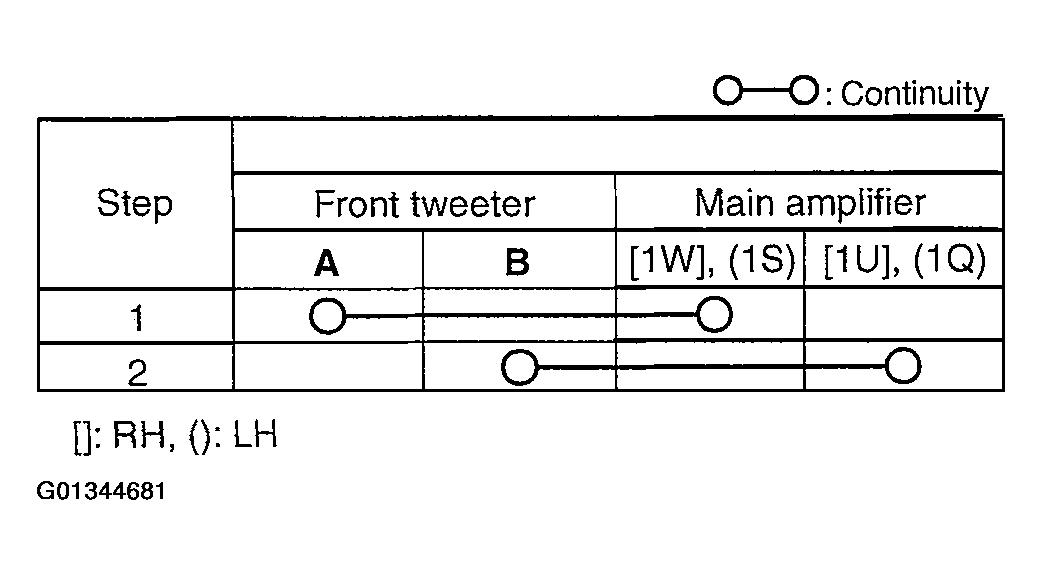

    Fig 1: Checking Front Tweeter & Main Amplifier Terminal Continuity
    G01344681Courtesy of MAZDA MOTORS CORP.

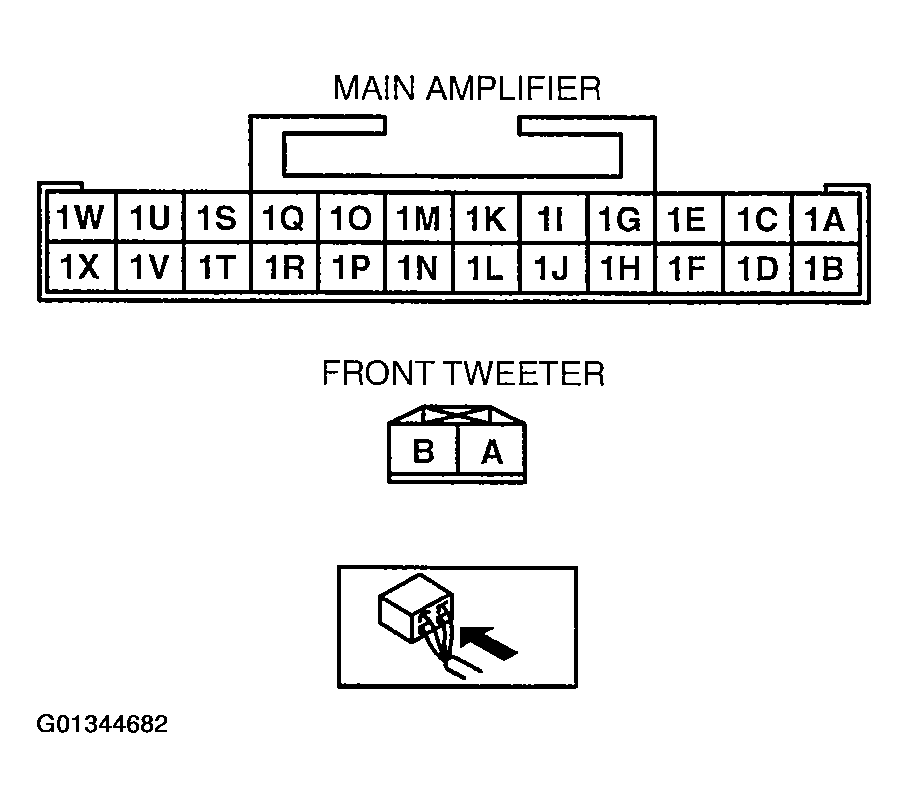

    Fig 2: Identifying Front Tweeter & Main Amplifier Connector Terminals
    G01344682Courtesy of MAZDA MOTORS CORP.
