LCD Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following parts:
1. Lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
2. Console (See CONSOLE REMOVAL/INSTALLATION .)
3. Center panel module (See CENTER PANEL MODULE REMOVAL/INSTALLATION .)
4. Center ventilator grille (See VENTILATOR GRILLE REMOVAL/INSTALLATION .)
Remove in the order indicated. See Fig 1.

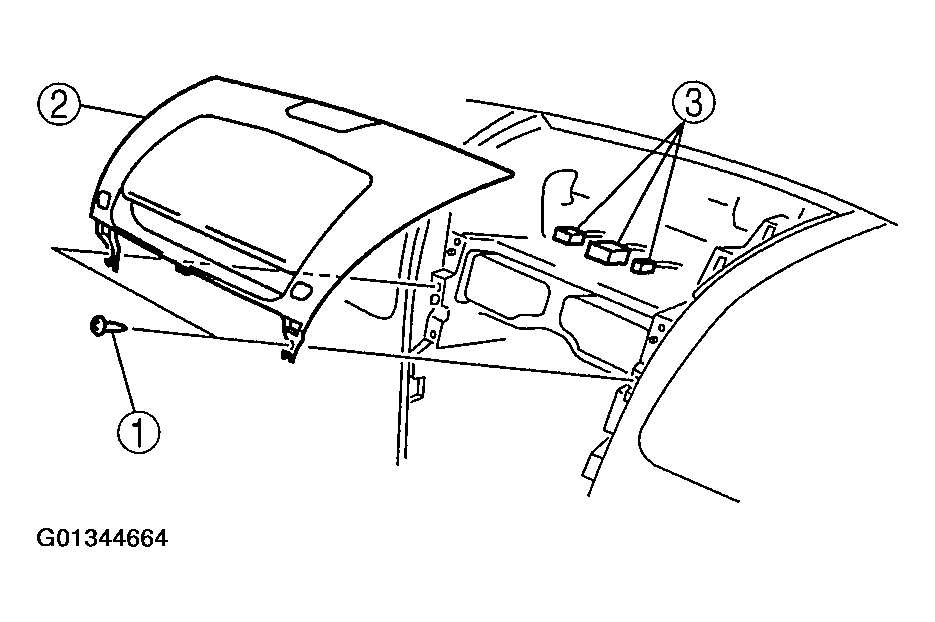

Fig 1: Removal Order Of LCD Unit
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.

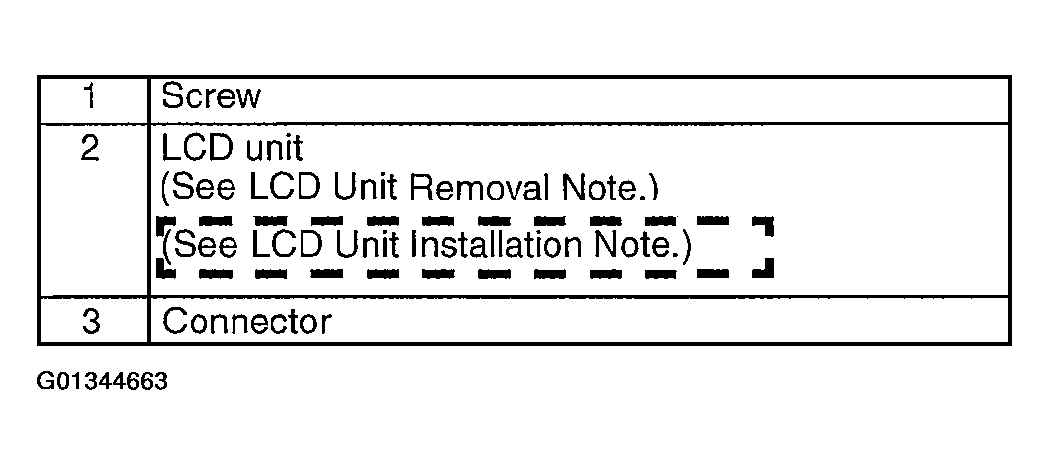

Fig 2: Removing/Installing LCD Unit
Courtesy of MAZDA MOTORS CORP.
