Driver's Seat

Disconnect the buckle switch connector.
Inspect for continuity between the buckle switch terminals using an ohmmeter.
- If not as specified, replace the front buckle.

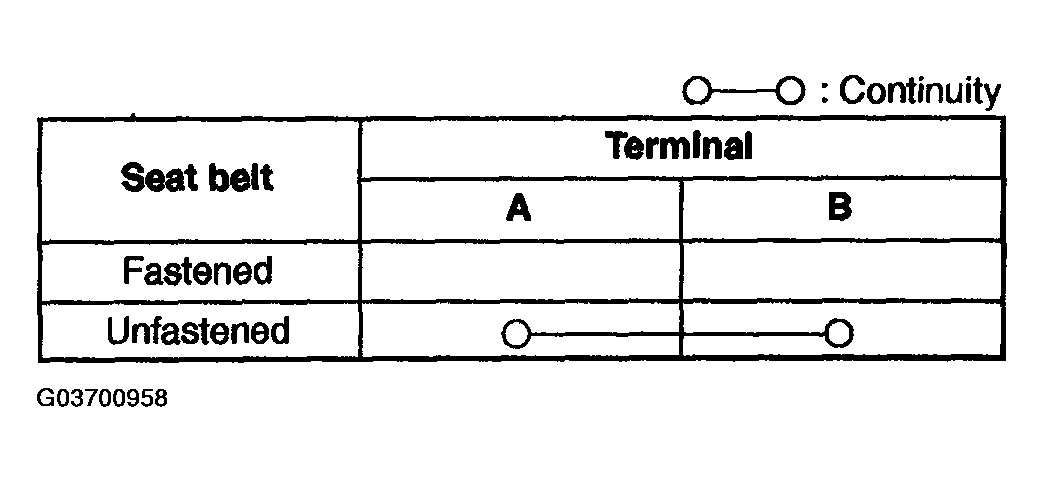

Fig 1: Inspecting Buckle Switch Continuity (Standard Deployment Control System) (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

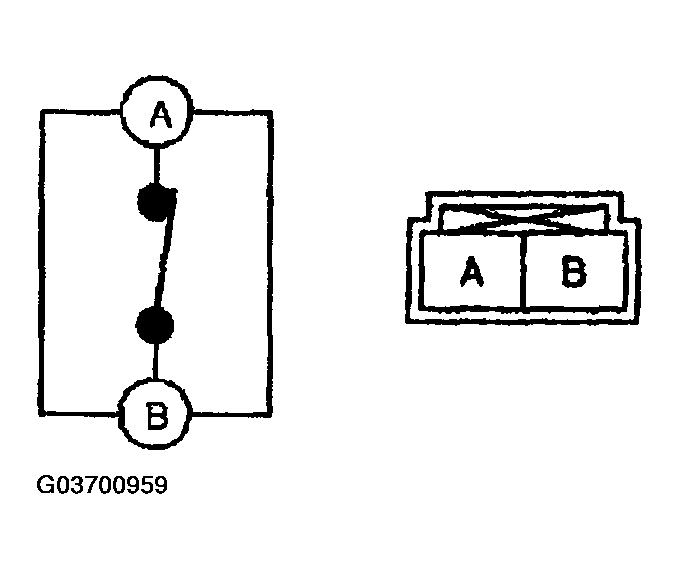

Fig 2: Inspecting Buckle Switch Continuity (Standard Deployment Control System) (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
