Reusing Rear Window Glass

NOTE:

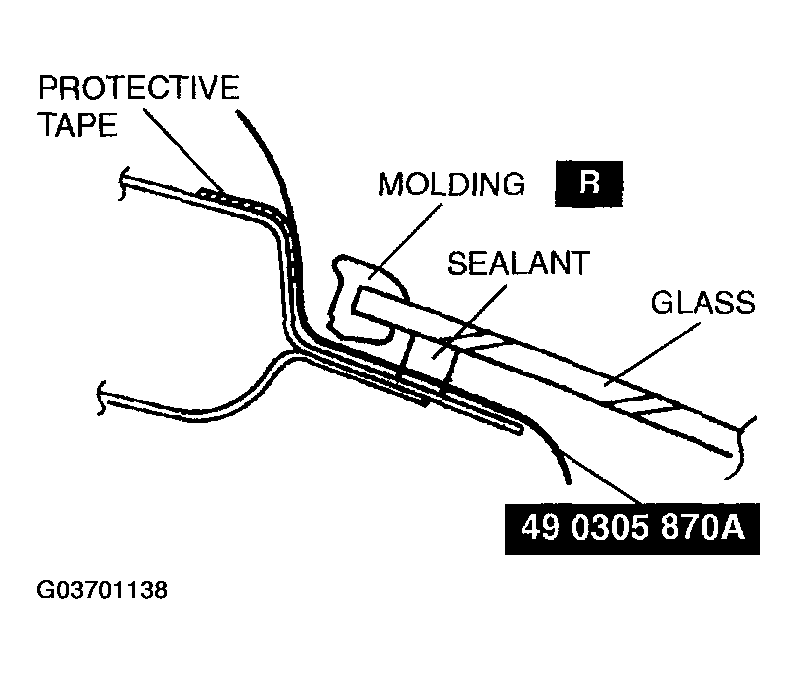

Before removing the rear window glass from the body, mark the position of the rear window glass by affixing tape to the windshield and body panel.

Use an awl to saw through the sealant, except where there are pins, fasteners, and spacers, from the inside of the vehicle.
WARNING:
- Using a SST (piano wire) with bare hands can cause injury. Always wear gloves when using a SST (piano wire).

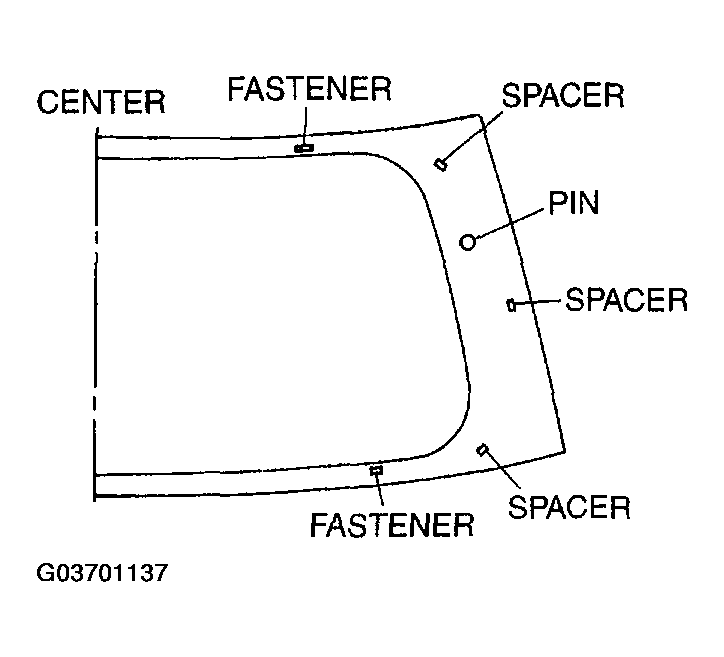

Fig 1: Identifying Pins, Fasteners, And Spacers
Courtesy of MAZDA MOTORS CORP.
Pass the SST (piano wire) through the hole.

Fig 2: Passing Piano Wire Through Hole
Courtesy of MAZDA MOTORS CORP.
Wind each end of the wire around a bar.
NOTE:
- Use a long sawing action to spread the work over the whole length of the SST (piano wire) to prevent it from breaking.
Working with another person, saw through the sealant around the edge of the glass, being careful not to damage the body.
Remove the rear window glass.

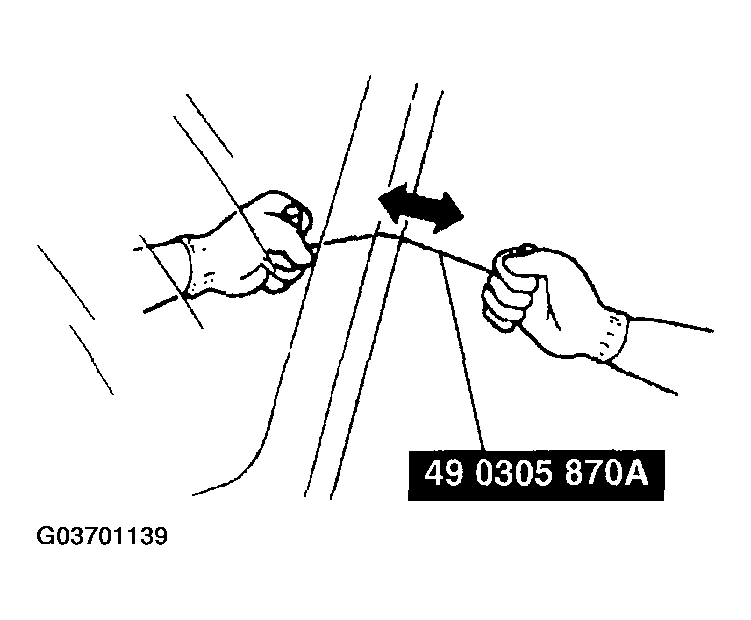

Fig 3: Sawing Through Sealant
Courtesy of MAZDA MOTORS CORP.
Remove the pins, spacers, and fasteners.
Remove the rear window molding from the rear window glass.

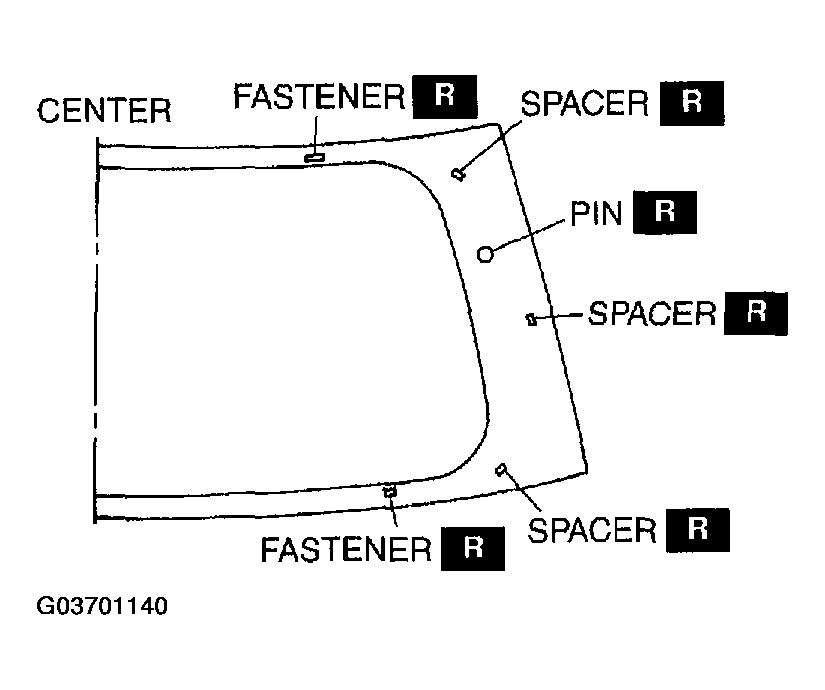

Fig 4: Removing Pins, Spacers, And Fasteners
Courtesy of MAZDA MOTORS CORP.
