Stator coil

  1. Inspect for continuity between the stator coil leads using an ohmmeter.
    • If there is no continuity, replace the stator.

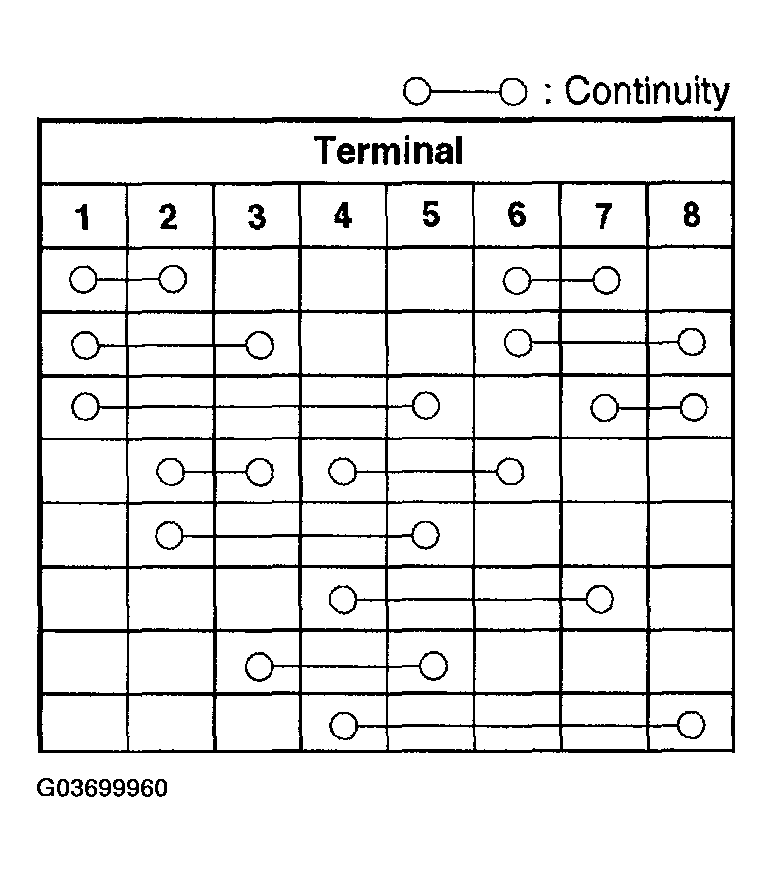

    Fig 1: Inspecting Continuity Between Stator Coil Leads Using Ohmmeter
    G03699960Courtesy of MAZDA MOTORS CORP.

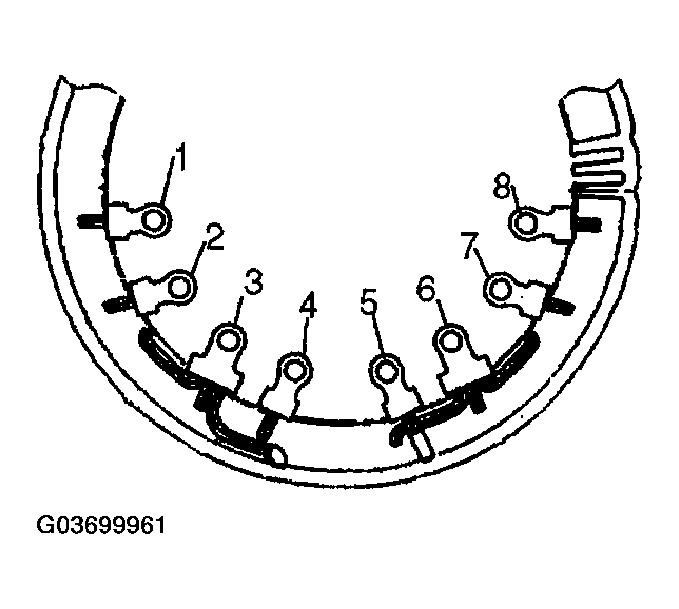

    Fig 2: Identifying Stator Coil Leads
    G03699961Courtesy of MAZDA MOTORS CORP.
  2. Verify that there is no continuity between the stator coil leads and the core using an ohmmeter.
    • If there is continuity, replace the stator coil.

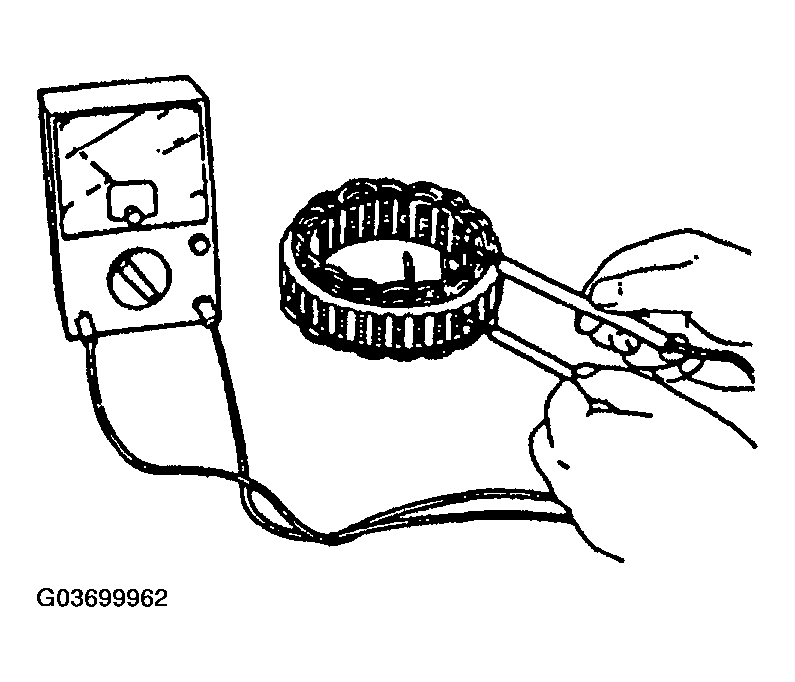

    Fig 3: Verifying Lack Of Continuity Between Stator Coil Leads
    G03699962Courtesy of MAZDA MOTORS CORP.
