Monitoring System And Control System Device Relationship Chart

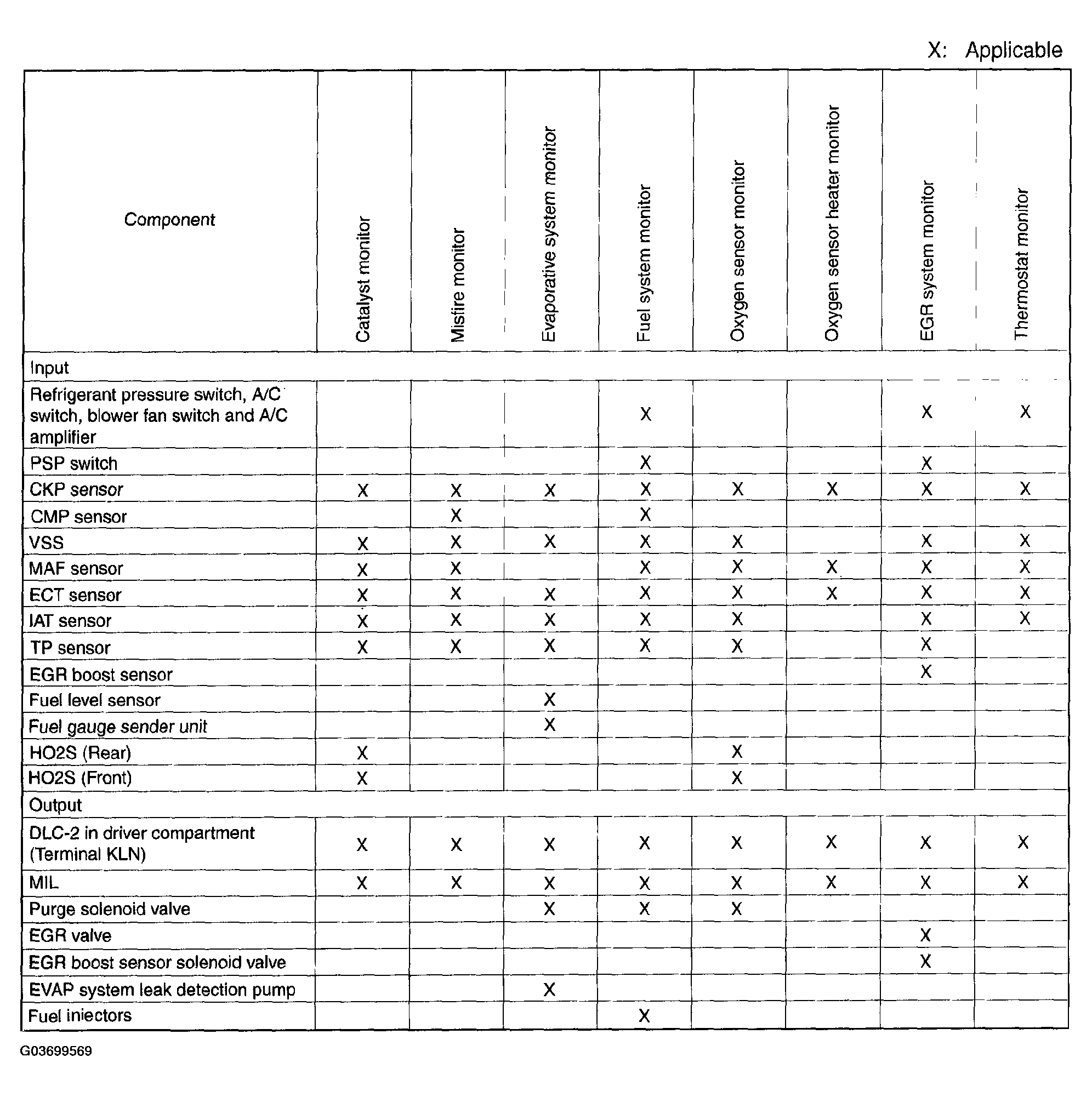

Fig 1: Identifying Monitoring System And Control System Device Relationship Chart
G03699569Courtesy of MAZDA MOTORS CORP.
