Inspection Method for Switch Connectors or Wires
- Connect WDS or equivalent to DLC-2.
- Turn ignition key to ON (Engine OFF).NOTE:
- If engine starts and runs, perform the following steps at idle.
- Access PIDs for the switch you are inspecting.
- Turn switch on manually.

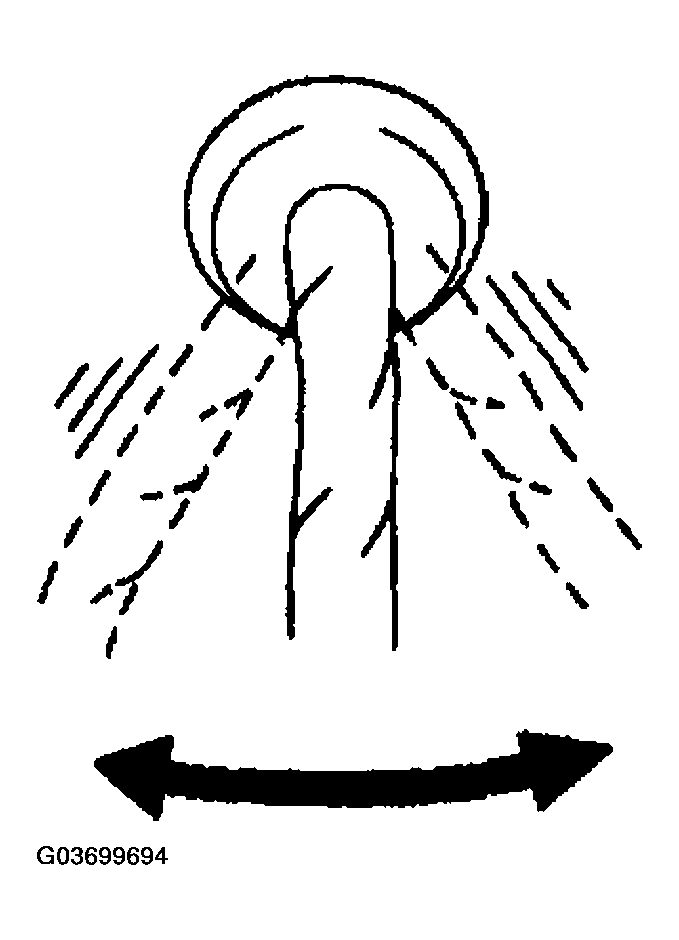

- Shake each connector or wire harness a bit vertically and horizontally while monitoring the PID.
- If PID value is unstable, check for poor connection.
